TestStand Core Capabilities
Simplify ATE development, debug, and deployment

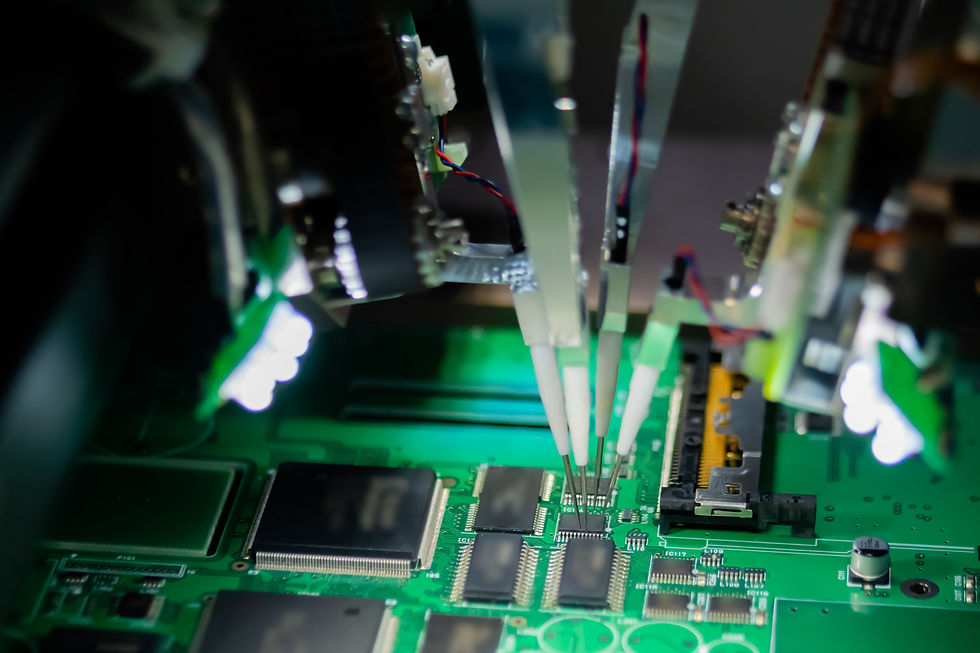

Test Execution
Process Models: Sequential, Parallel, and Batch process models for single or multi-up test systems
Multi-threading: Thread-safe execution with automatic resource management
Optimize throughput: Configurable test socket allocation and scheduling
Test Execution
.png)

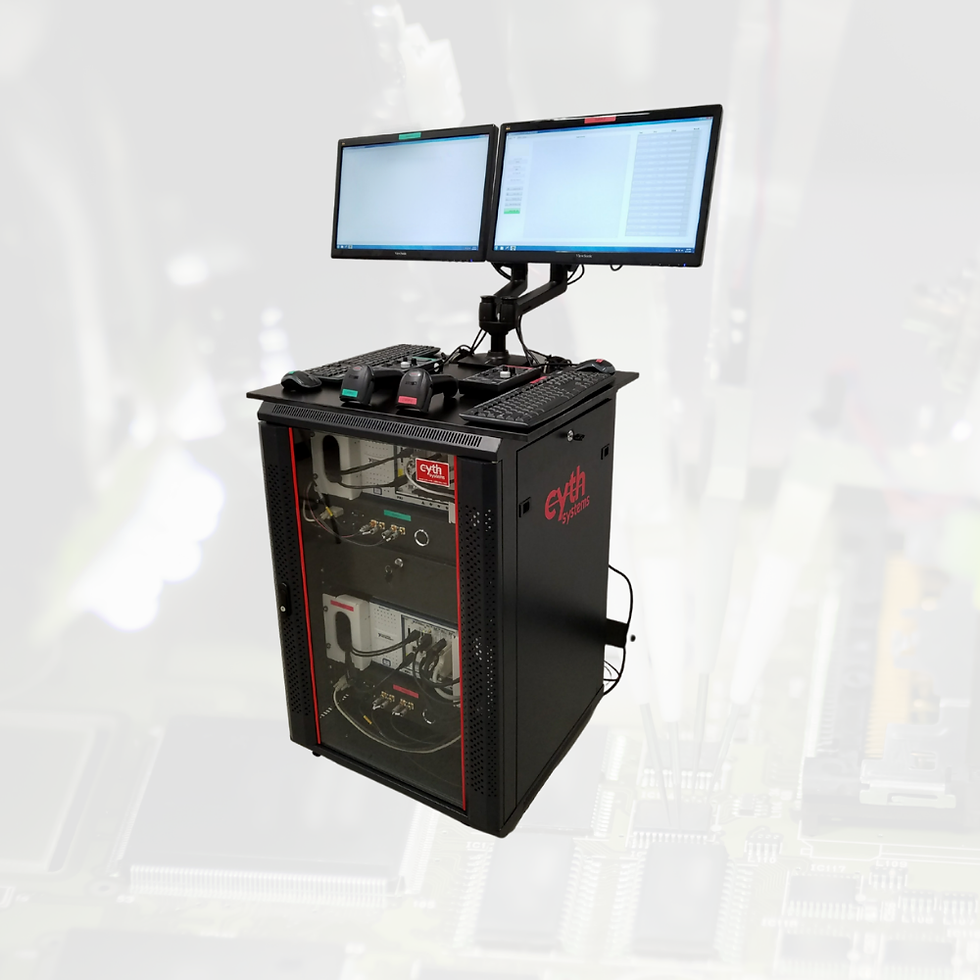

Integration & Deployment
Development and Deployment: License structures for development and runtime machines
Pin Abstraction and Switching: Channel aliasing and path routing through NI Switch executive adapter
Debugging Tools: Built-in debugging and remote monitoring through InstrumentStudio
Interfaces: Gigabit ethernet, USB
Integration & Deployment
.png)
Test Sequence Development
Test Code Integration: Use measurement modules developed in LabVIEW, .NET, Python

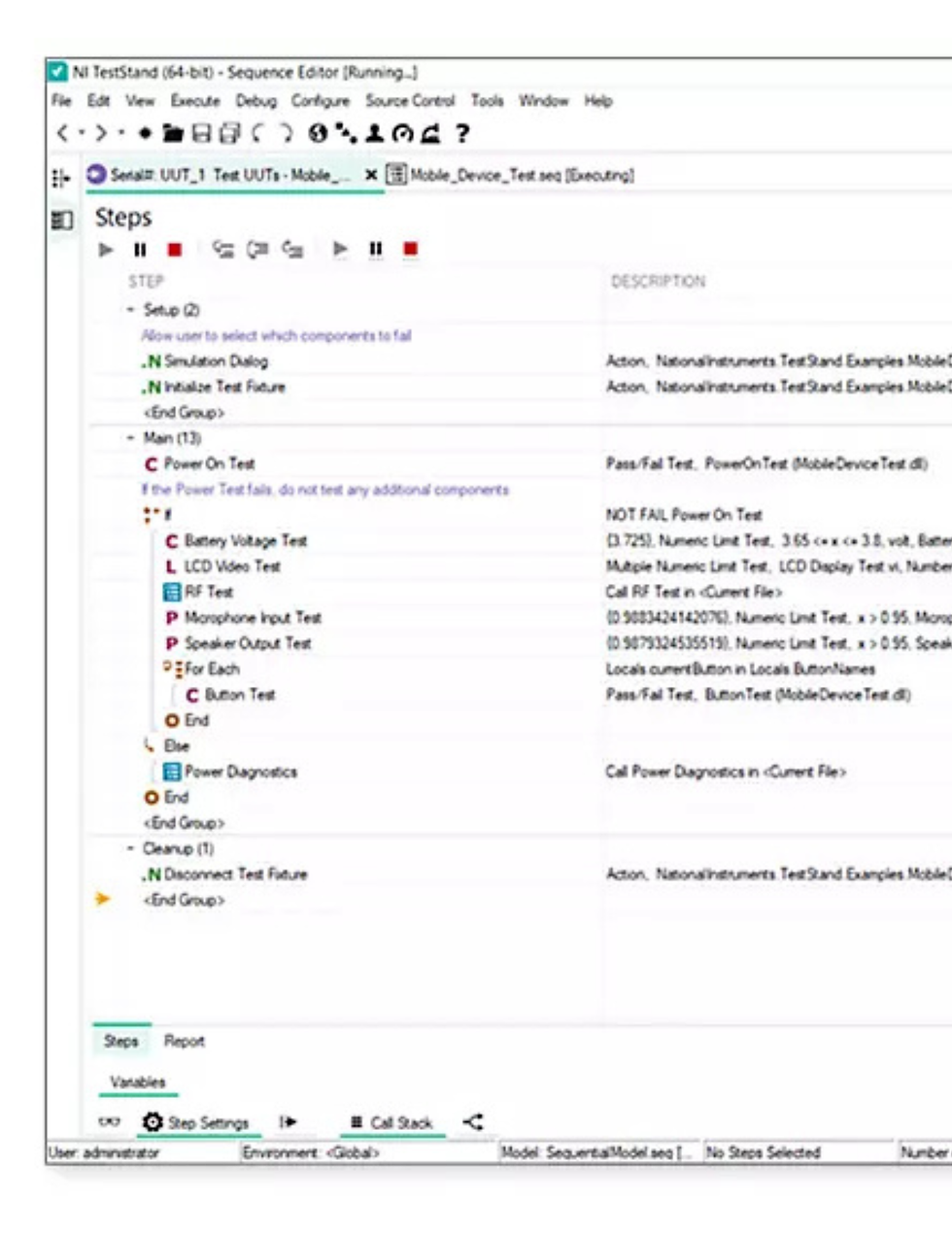

Intuitive sequence editor: Easily re-arrange test steps, apply limits to measurements, and build in conditional test flow logic.
Version Control: Manage codebases across teams and sites
Test Sequence Development
Data and Reporting
Results Visualization: Instantaneous access to test results and customizable operator interfaces
Report Generation: Use defaults or customize for HTML, XML, ATML, PDF formats
Data Connectivity: Log directly to database or network-attached storage (NAS)
Data and Reporting
"We were bringing up a new product line and needed a functional test system fast. The team at Cyth helped plan the project, fully developed the fixturing and DUT connectivity, and provided a software framework we could easily update with new tests. We simply didn't have the bandwidth to take on all this work ourselves while supporting existing lines."
J. Rodrigo
Engineering Manager, Electronics Manufacturing
Why Use TestStand?
Modularize Test
Maximize code reuse
Modular test development across programming languages allows for measurement and analysis code reuse across projects and DUTs.
Parallelize Test
Decrease test time & increase throughput
Parallel and batch execution natively optimize resource utilization and thread management for maximum efficiency.
Operationalize Test
Streamline deployments for data access
Runtime engines and customizable interfaces simplify deployments while automated report generation and data tools maximize test insights.
Build your system. We're here to help.
