Why Test with PCBACheck?
PCBACheck solves 90% of PCBA test needs with standard configuration options. Yet, the customization options are truly endless.
Custom fixturing for single-side, multi-sided, multi-up, and multi-board test

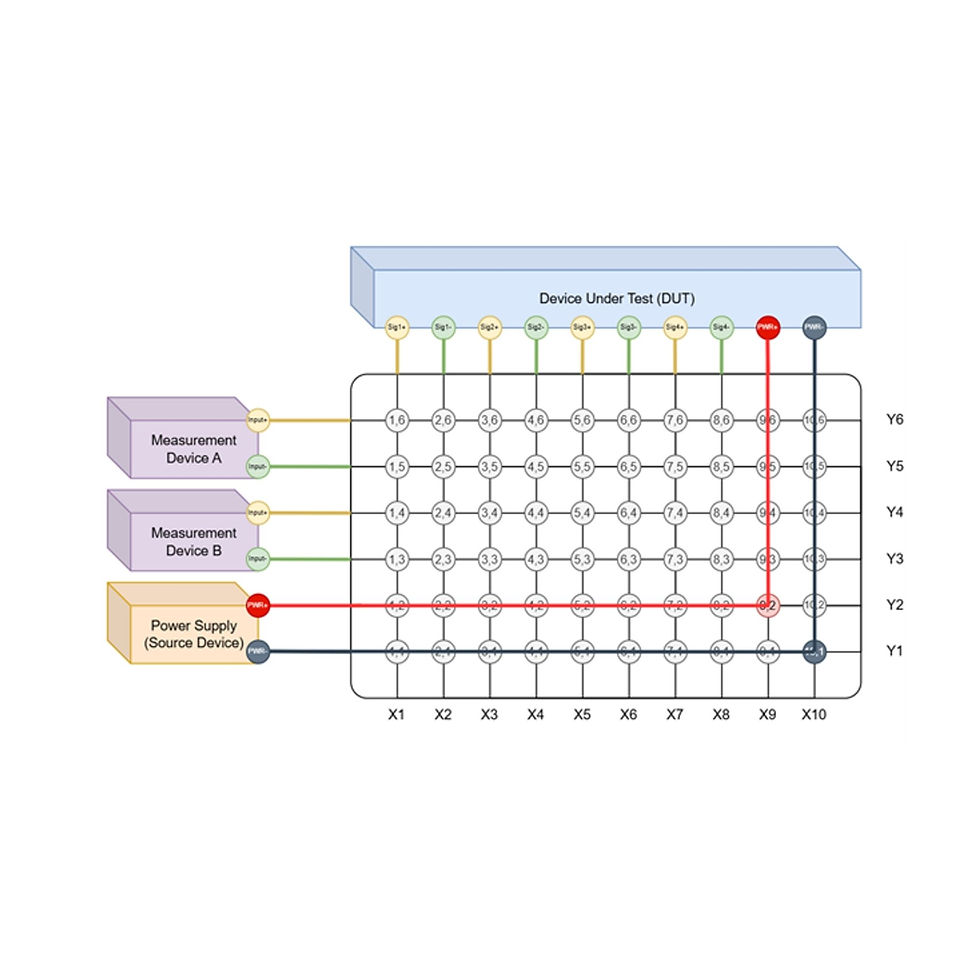

PXI-based interposer board for software-defined pin mapping and tidy wiring
Test racks and enclosures for simplified system integration and commissioning.
Modular instrumentation for versatile & comprehensive calibrated measurement I/O.
Test automation framework for streamlined test development, execution, & debug

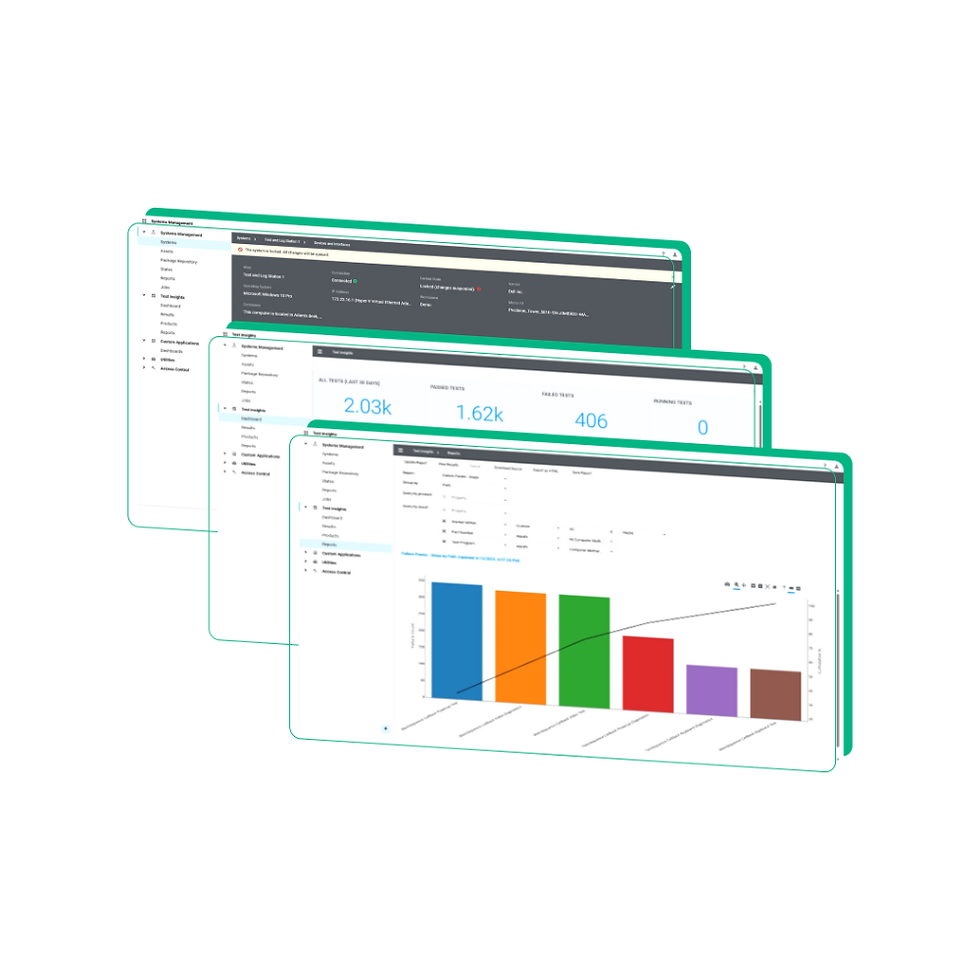

Deployment and data tools for enhanced visualization, reporting, & utilization tracking.
Comprehensive test coverage
Verify product quality before shipping
Proven instrumentation combined with a test automation framework tailored to your test needs, from single-up to multi-PCBA fixture designs.
Fast-track system deployments
Leverage pre-designed test infrastructure
Cyth’s reusable design framework combined with bespoke customization of only the most important components to your PCBA accelerates ATE system deployment.
Lead with reliability
Automate test procedures & scale data access
Deploy automated test systems that ensure reproducibility and simplify data management across DUTs and production runs.

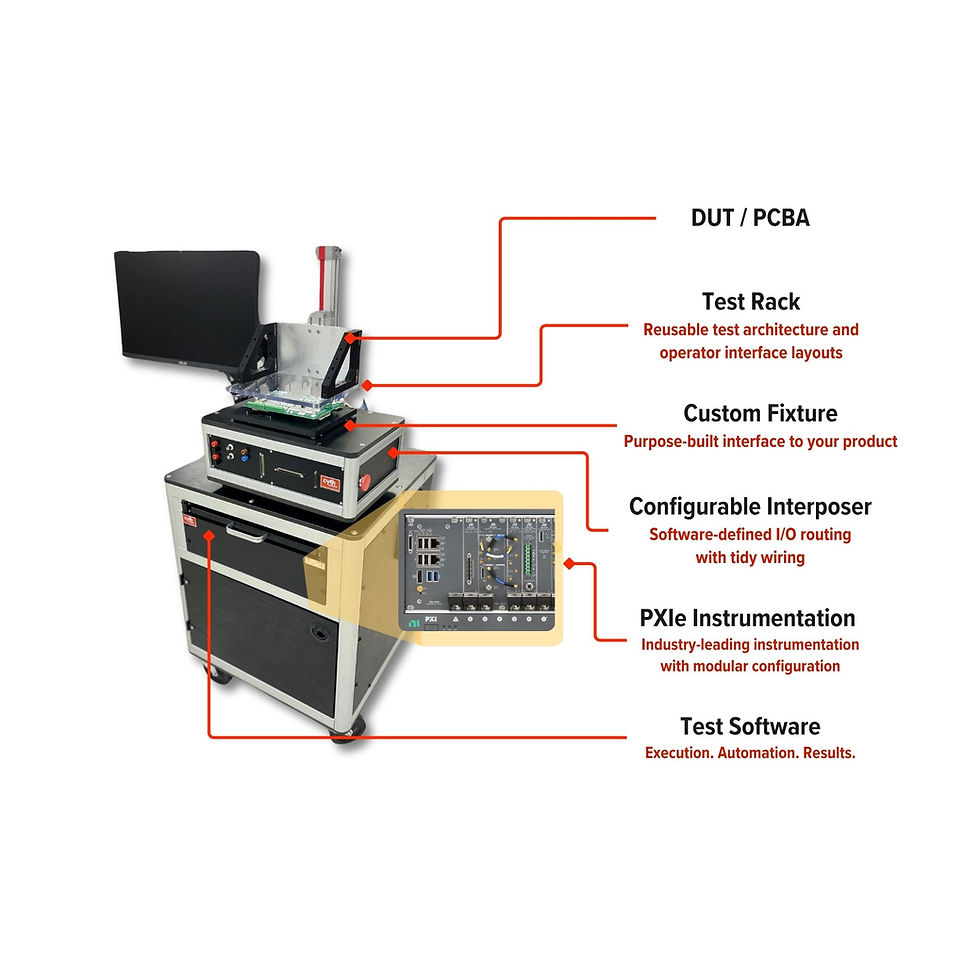

PCBACheck System Components
Deploy sooner with a pre-designed test architecture flexible to your application.

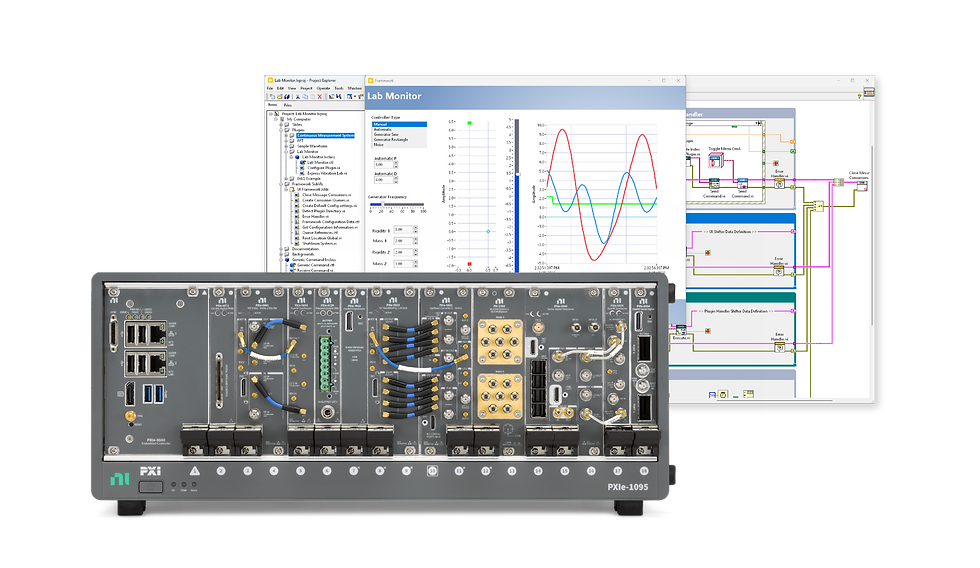

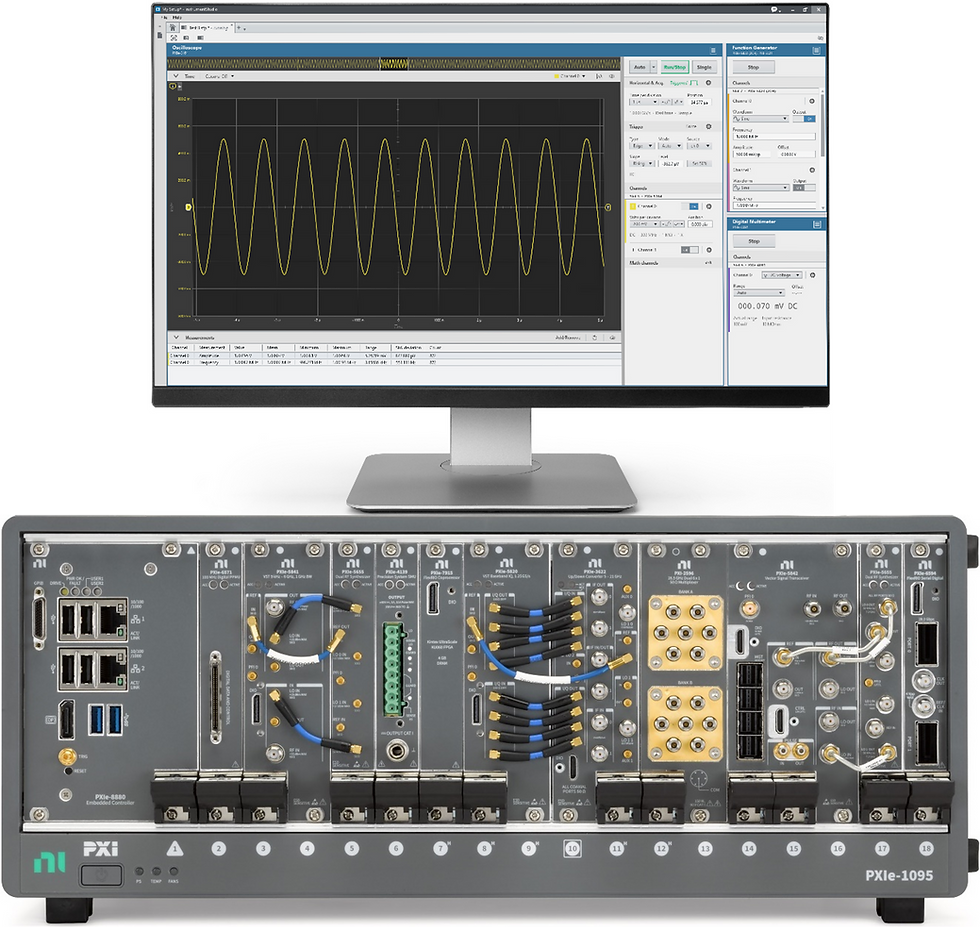

PXIe Instrumentation
Modular PXIe instruments, controllers, and interfaces for any test plan.
Signal acquisition: Oscilloscopes, digital multimeters
Signal generation: Waveform and pulse generators
Sensor-based measurements: Temperature, PCBA strain, environmental
RF: Vector signal analyzers, generators, transceivers
Programmable power & readback: Power supplies, loads, & source measure units
Interfaces: Serial, UART, CAN, wireless (WiFi, BLE), custom
Switching and signal routing: Configurable relays, multiplexers, matrices
.png)
.png)
.png)
"We were bringing up a new product line and needed a functional test system fast. The team at Cyth helped plan the project, fully developed the fixturing and DUT connectivity, and provided a software framework we could easily update with new tests. We simply didn't have the bandwidth to take on all this work ourselves while supporting existing lines."
J. Rodrigo
Engineering Manager, Electronics Manufacturing
What can Cyth and PCBACheck test?
Common test coverage and ATE station functionality
Power & Voltage Testing
-
Power supply voltage levels (VCC, VDD, VREF)
-
Voltage regulator output verification
-
Power-up and power-down sequence testing
-
Overvoltage and undervoltage protection testing
-
Voltage tolerance and stability testing
-
Current sense and power consumption testing
Digital Signal Testing
-
Clock signal frequency and accuracy testing
-
Digital I/O functionality (control lines, data lines)
-
Logic functionality testing (gate-level and functional)
-
PWM signal generation and measurement
-
Digital control signals (reset, enable, interrupt)
Analog Signal Testing
-
ADC input functionality and accuracy testing
-
DAC output functionality and accuracy testing
-
Analog sensor input validation
-
Temperature sensor accuracy and calibration
-
Voltage reference verification
Communication Protocol Testing
-
Serial communication and bus test: RS-232, RS-485, SPI, I2C, UART
-
CAN bus protocol verification
-
Custom protocol validation
Memory & Data Testing
-
RAM read/write functionality testing
-
Flash memory programming and verification
-
Data integrity testing (checksum, CRC validation)
-
Firmware upload and validation
-
EEPROM / Flash programming and readback
User Interface Testing
-
Button and switch functionality testing
-
LED indicator verification
-
Display output testing (LCD, OLED, LED segments)
-
Touch interface validation
-
Audio output quality testing
System Integration Testing
-
Motor control functionality testing
-
Relay control output verification
-
External trigger input testing
-
Sensor calibration and validation
-
Environmental condition testing
Build your system. We're here to help.
Precision automation for test, control, and performance-critical applications.
