Why buy TAU?
TAU gets you measurements in minutes - no programming required
Fast and flexible measurements for voltage, current, digital, and sensors
Acquire data in seconds with no programming required

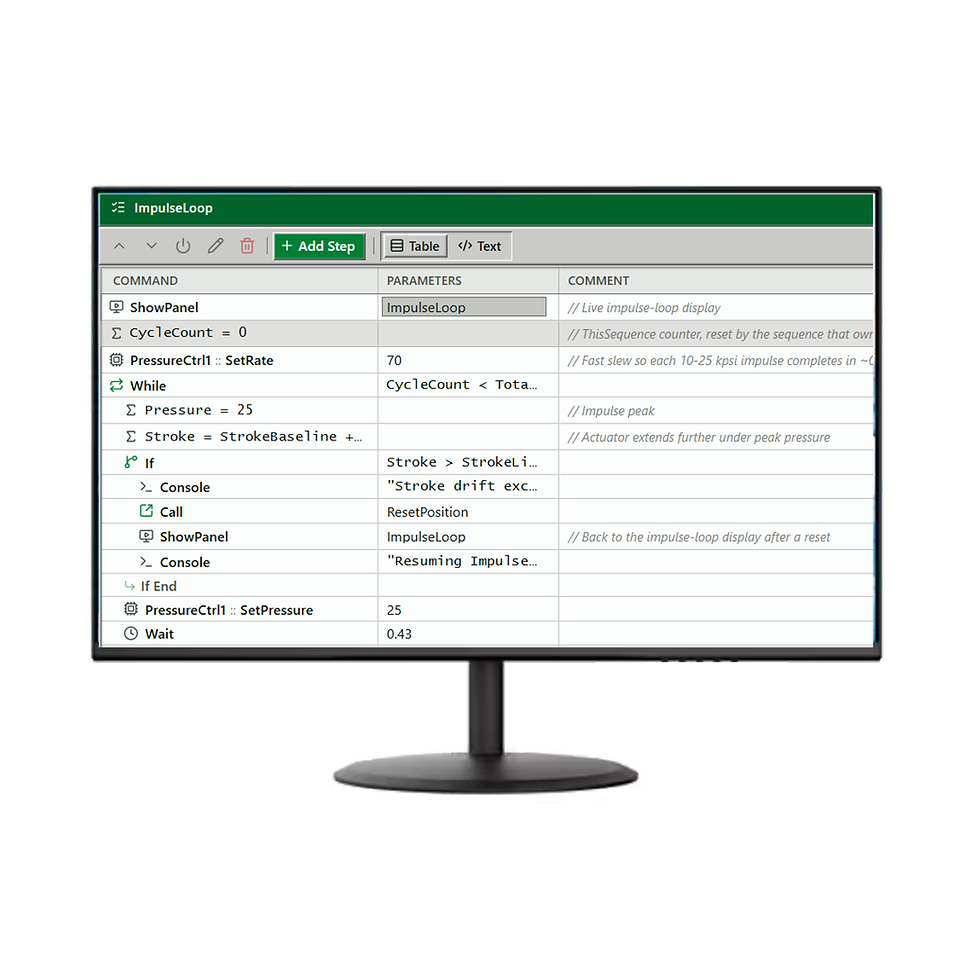

Use simple test instructions to activate individual steps or create combination commands

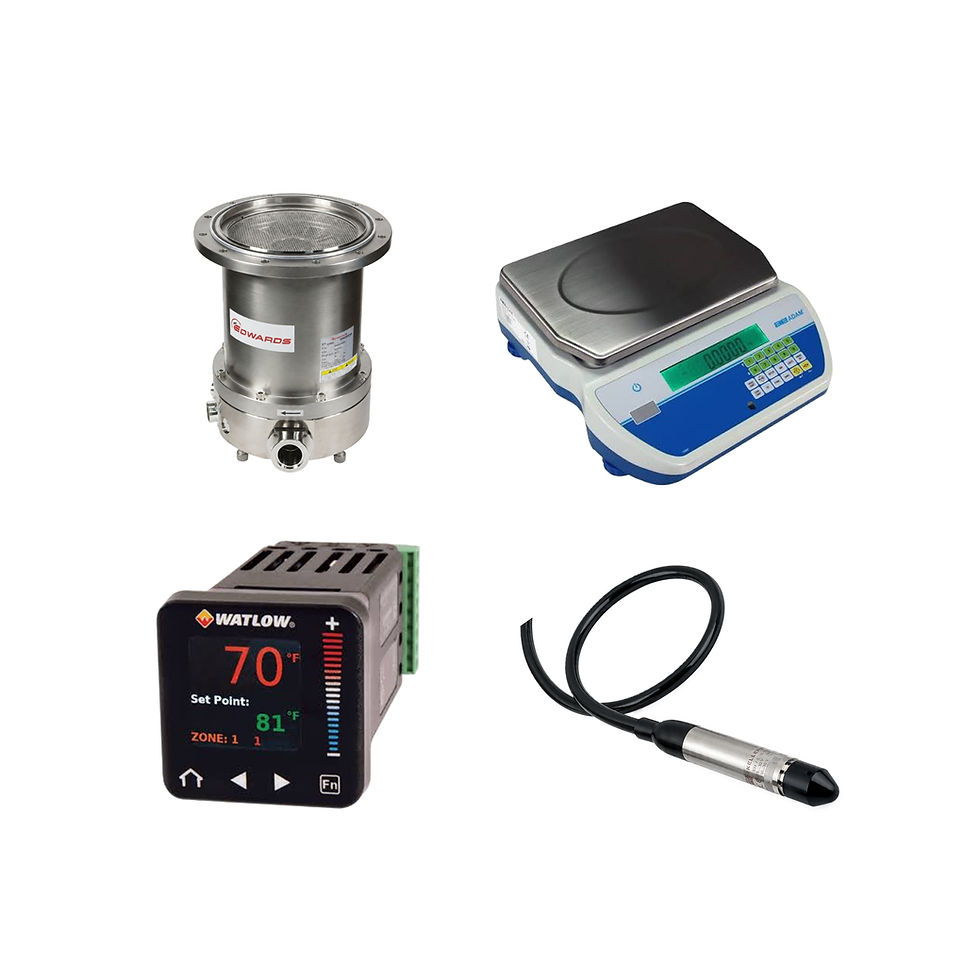

Control external devices via serial and DB37 expansion ports
Use available insturment drivers for the most common devices
Get to answers faster with inline analysis and real-time logging

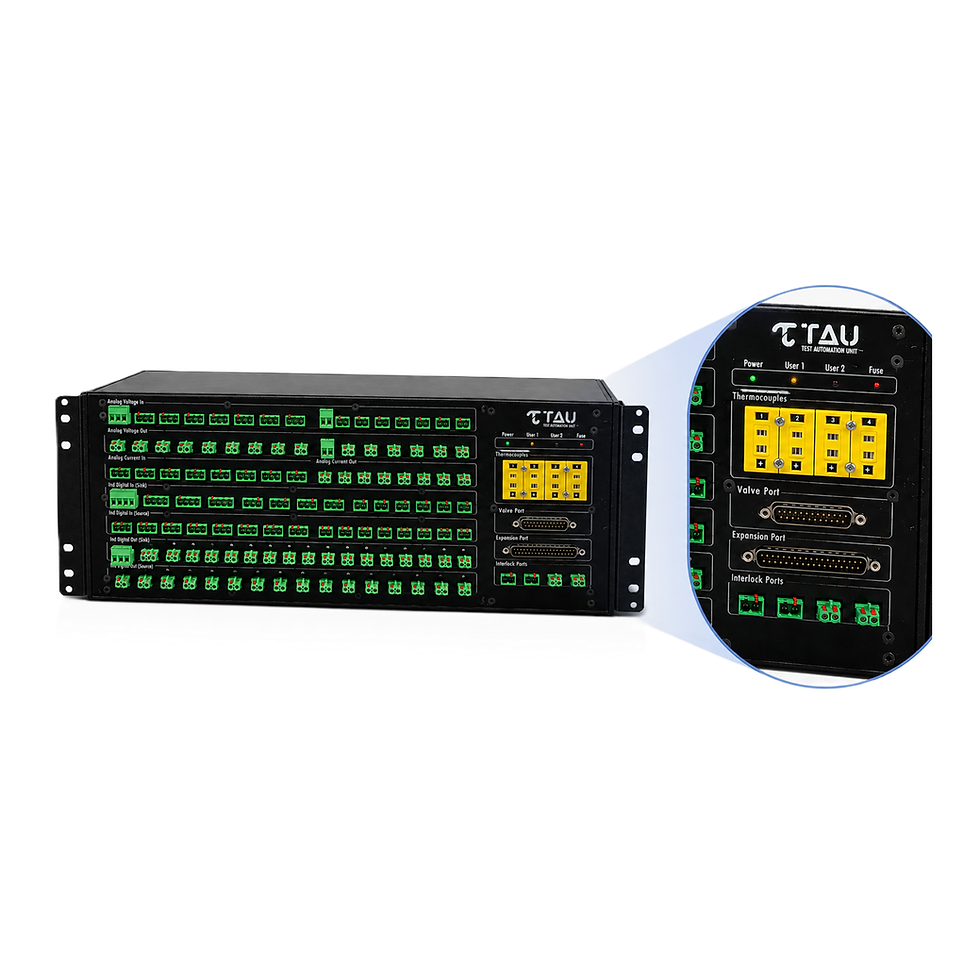

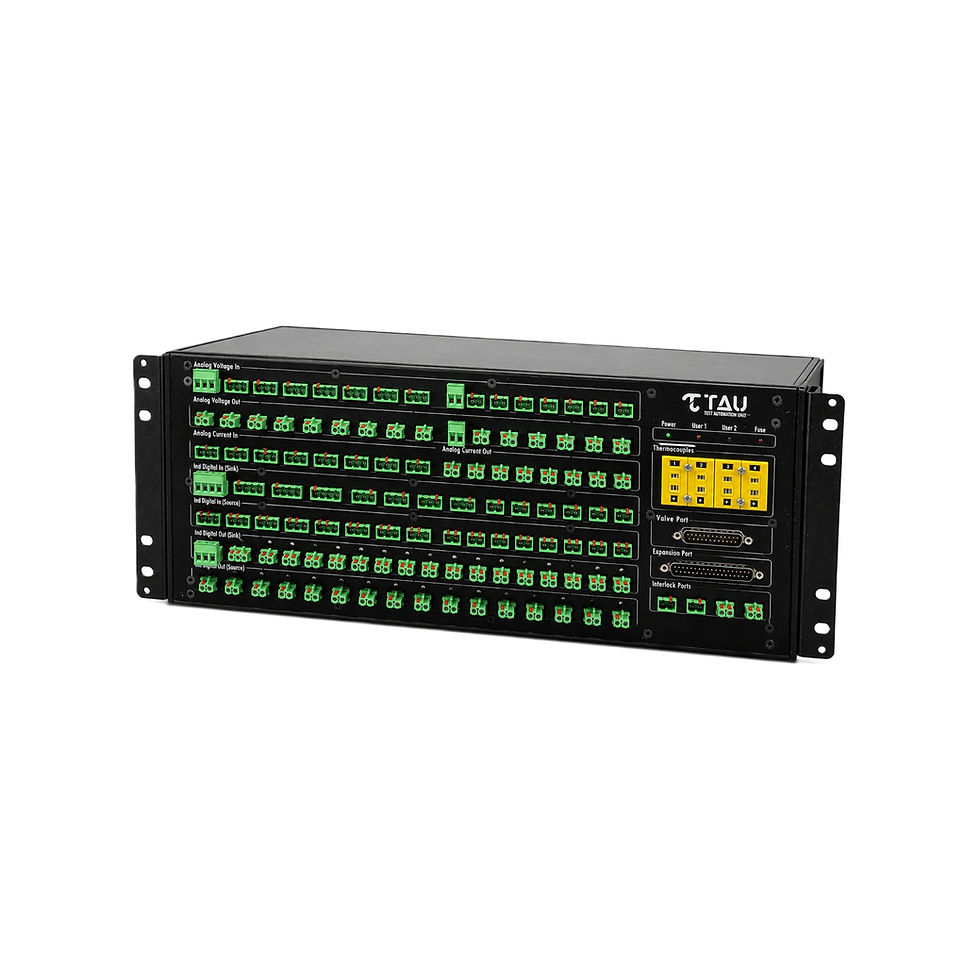

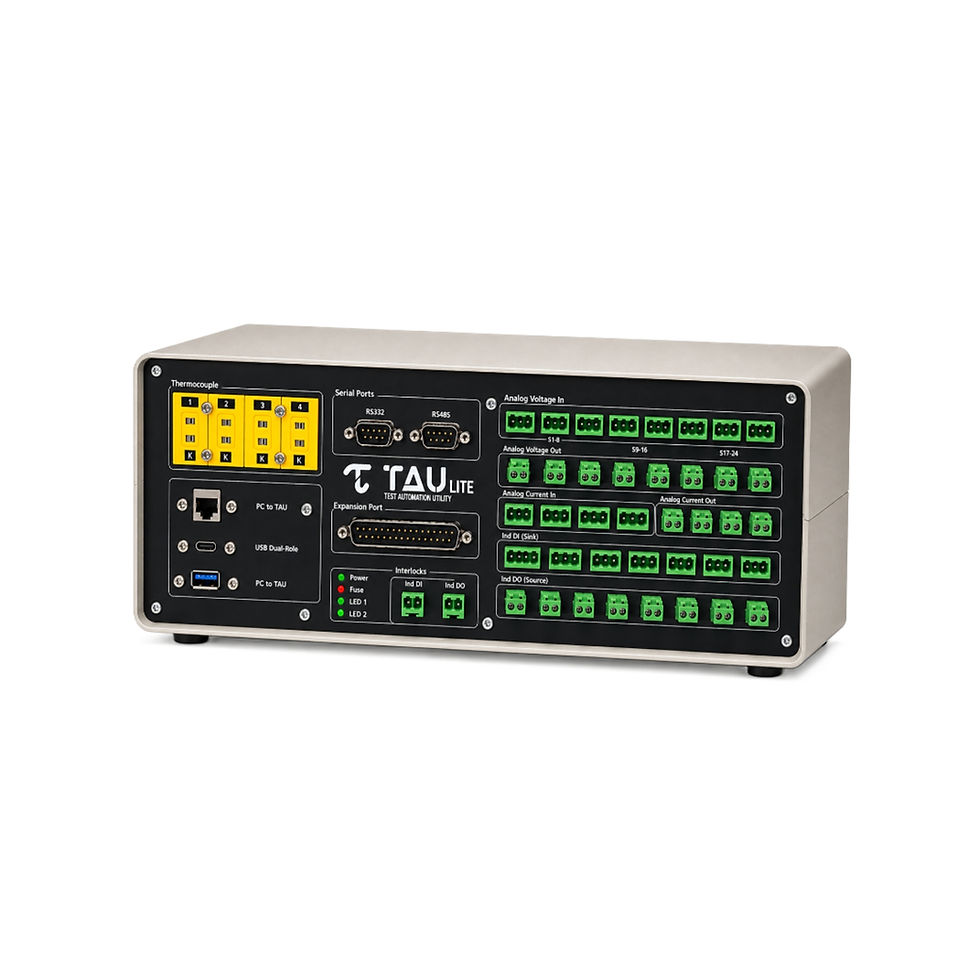

TAU System Features
Any signal. One box. Configurable to your requirements.
.png)

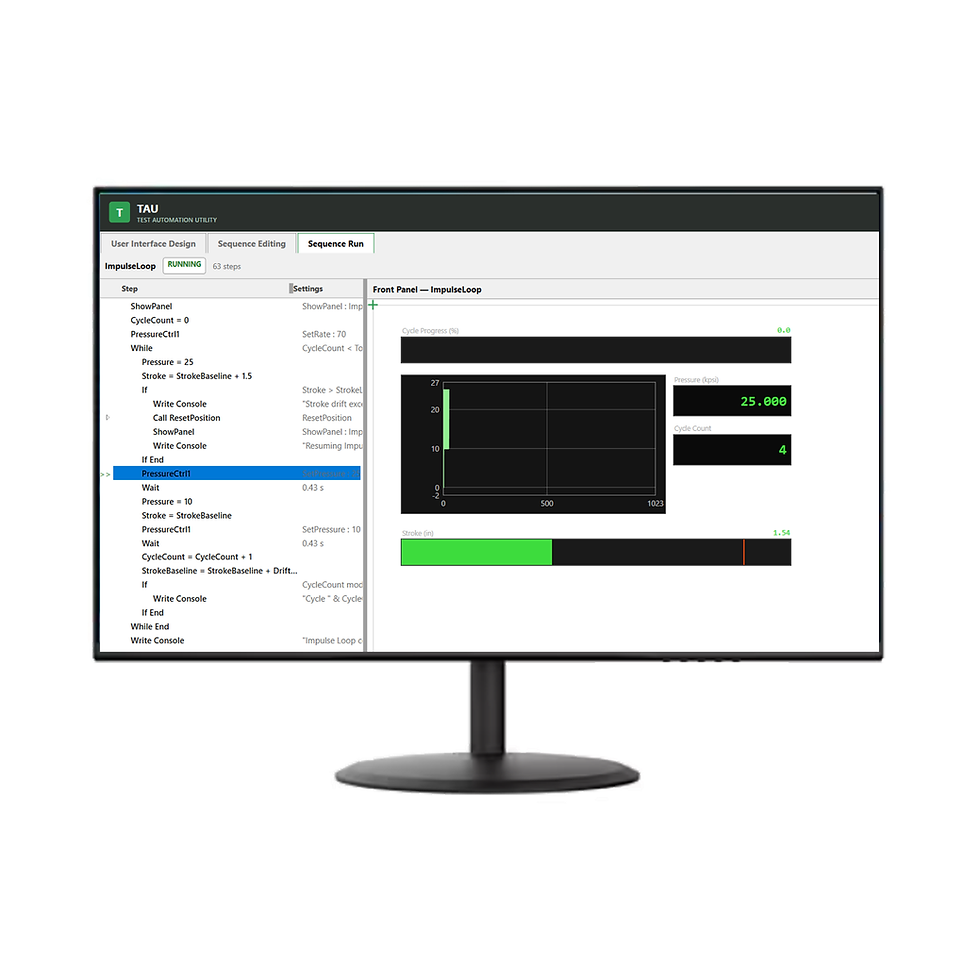

Signals in Seconds
Acquire data in seconds - no programming required, yet widely extensible
Unique command line engine provides massive productivity gain
Built-in capabilities for custom UIs, data analysis, and data streaming
All connectors with easy wiring option
Built-in signal conditioning and sensor excitation
Replicate device instance without touching code
.png)
What can PCBACheck do?
The perfect balance of custom and standard for ATE
MEASURE
-
Voltage
-
Current
-
Resistance
-
Temperature
-
Frequency
-
Waveforms
STIMULATE
-
Power
-
Analog outputs
-
Digital I/O
-
Loads
-
Waveform generation
COMMUNICATE
-
CAN
-
LIN
-
Ethernet
-
Serial
-
USB
VALIDATE
-
Functional behavior
-
Software
-
Communications
-
Performance
-
Pass/fail limits
-
Custom protocol validation
What can PCBACheck do?
The perfect balance of custom and standard for ATE
Power & Voltage Testing
-
Power supply voltage levels (VCC, VDD, VREF)
-
Voltage regulator output verification
-
Power-up and power-down sequence testing
-
Overvoltage and undervoltage protection testing
-
Voltage tolerance and stability testing
-
Current sense and power consumption testing
Digital Signal Testing
-
Clock signal frequency and accuracy testing
-
Digital I/O functionality (control lines, data lines)
-
Logic functionality testing (gate-level and functional)
-
PWM signal generation and measurement
-
Digital control signals (reset, enable, interrupt)
Analog Signal Testing
-
ADC input functionality and accuracy testing
-
DAC output functionality and accuracy testing
-
Analog sensor input validation
-
Temperature sensor accuracy and calibration
-
Voltage reference verification
Communication Protocol Testing
-
Serial communication and bus test: RS-232, RS-485, SPI, I2C, UART
-
CAN bus protocol verification
-
Custom protocol validation
Memory & Data Testing
-
RAM read/write functionality testing
-
Flash memory programming and verification
-
Data integrity testing (checksum, CRC validation)
-
Firmware upload and validation
-
EEPROM / Flash programming and readback
User Interface Testing
-
Button and switch functionality testing
-
LED indicator verification
-
Display output testing (LCD, OLED, LED segments)
-
Touch interface validation
-
Audio output quality testing
System Integration Testing
-
Motor control functionality testing
-
Relay control output verification
-
External trigger input testing
-
Sensor calibration and validation
-
Environmental condition testing
"We were bringing up a new product line and needed a functional test system fast. The team at Cyth helped plan the project, fully developed the fixturing and DUT connectivity, and provided a software framework we could easily update with new tests. We simply didn't have the bandwidth to take on all this work ourselves while supporting existing lines."
J. Rodrigo
Engineering Manager, Electronics Manufacturing
Build your system. We're here to help.
Precision automation for test, control, and performance-critical applications.
