Why test with CompactDAQ?
Modular Flexibility
Start simple, scale as needed
Mix & match from an ecosystem of C Series I/O modules to create exactly the automated measurement system you need.
Rugged Reliability

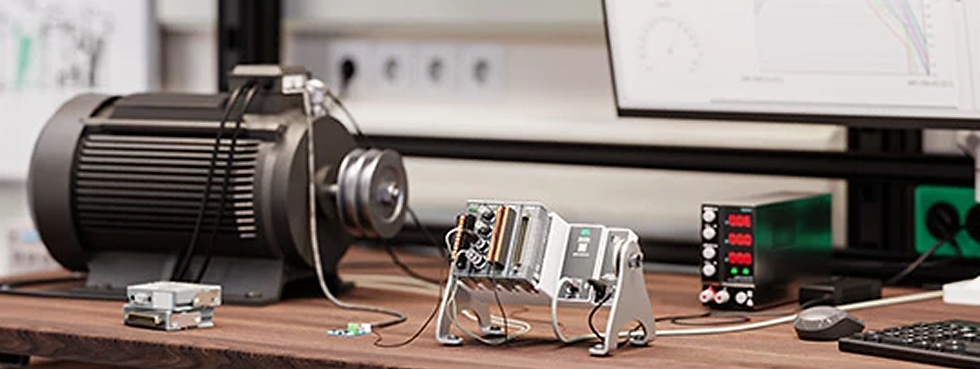

For the Bench, factory, or field
Built for real-world conditions with -40°C to 70°C operating range, vibration durability, and industrial-grade components and connectors.
Simplified Integration
Connect, configure, and start measuring
Configuration-based software, APIs, and versatile connectivity options support endless customizations.

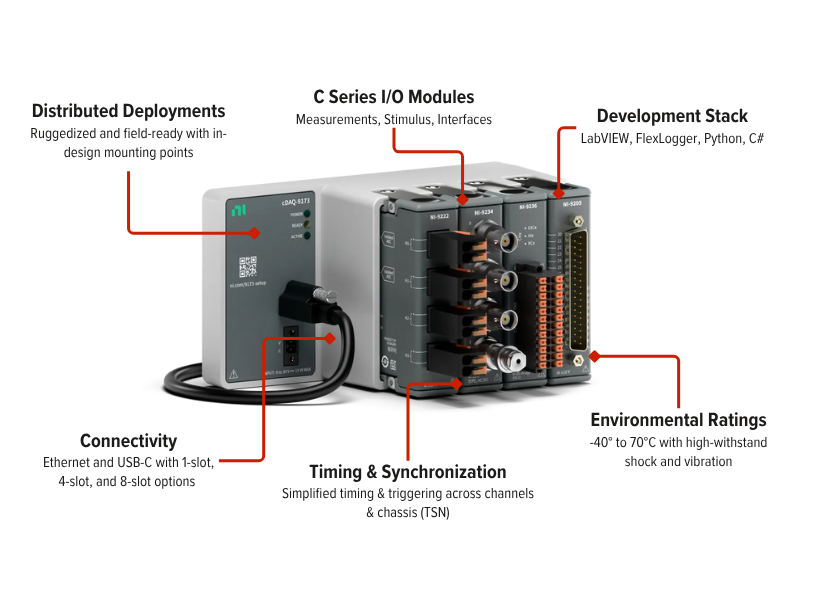

Core Features
CompactDAQ delivers flexible measurement and datalogging capabilities through a versatile toolchain.

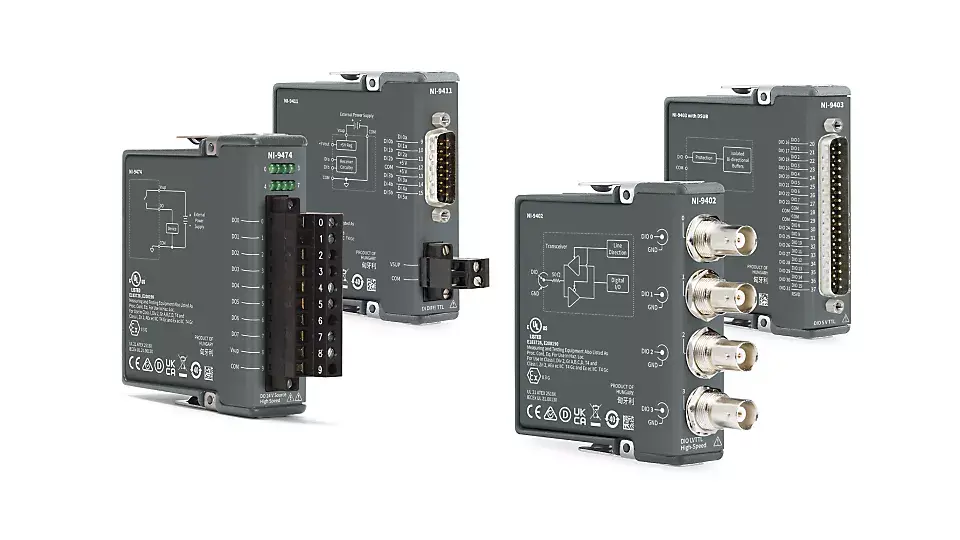

I/O Modules: 100+ C Series modules for electrical and sensor-based measurements
Timing & Synchronization: Precision timing across modules and chassis (TSN)
Connectivity: Ethernet, USB
Datalogging software: FlexLogger (free)
APIs: LabVIEW, Python, C/C++, .NET
%20Features%20Diagram.png)
.png)
Chassis

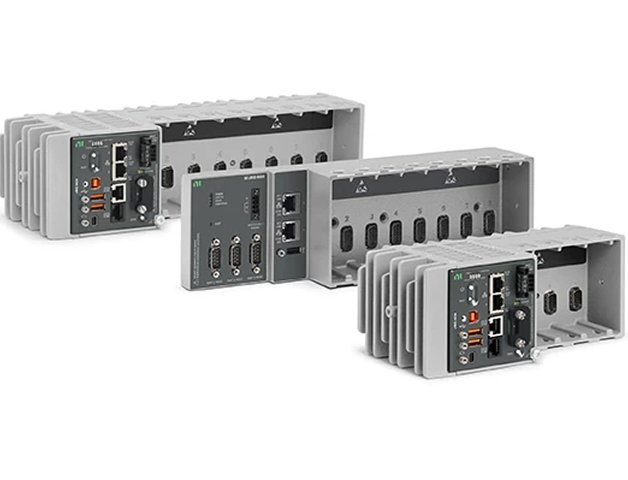

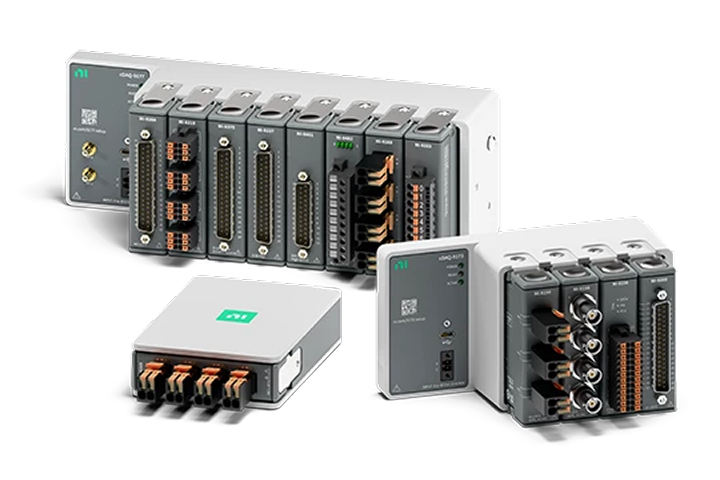

CompactDAQ Chassis
Ruggedized chassis with I/O module slots, timing and triggering buses, and connectivity interfaces.
Slot count: 1-slot, 4-slot, 8-slot, 14-slot
Connectivity: Ethernet, USB-C, USB 3.0/2.0
Distributed measurements: Time Sensitive Networking (TSN) for synchronized multi-chassis systems
Common Applications
From the bench to the field, CompactDAQ simplifies mixed measurement systems and datalogging tasks.
Industries:
Life sciences
Energy and Power
Semiconductor & Industrial Equipment
Aerospace & Defense
Automotive
Research & Academia
.png)
"CompactDAQ replaced three separate measurement systems in our compressor validation lab. One chassis handles thermocouples, pressure transducers, vibration sensors, and power measurements, all synchronized for data correlation. The team at Cyth helped us select the right modules for our requirements and got us up and running in days. When requirements changed, we simply added modules. No other system offers this flexibility."
P. Rogers
HVAC and Industrial Equipment Manaufacturer
Reference Designs for Automated Datalogging & Test
Jump-start your project with Cyth's proven reference designs featuring common hardware configurations, software frameworks, and bring-up support.
.png)
.png)
.png)
Build your system. We're here to help.
Precision automation for test, control, and performance-critical applications.
