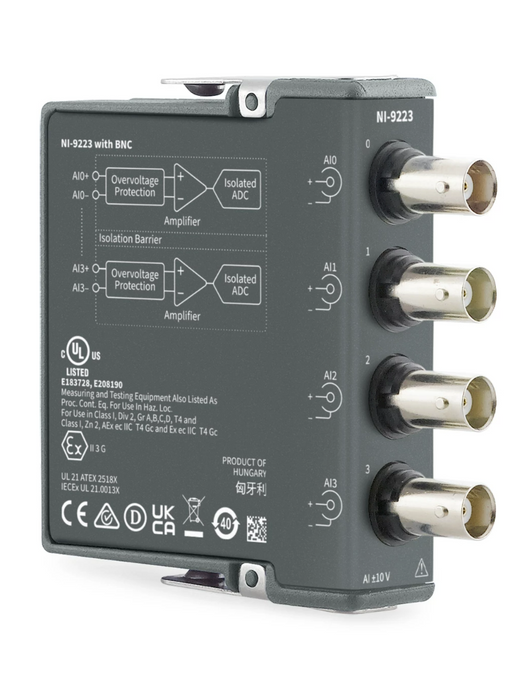

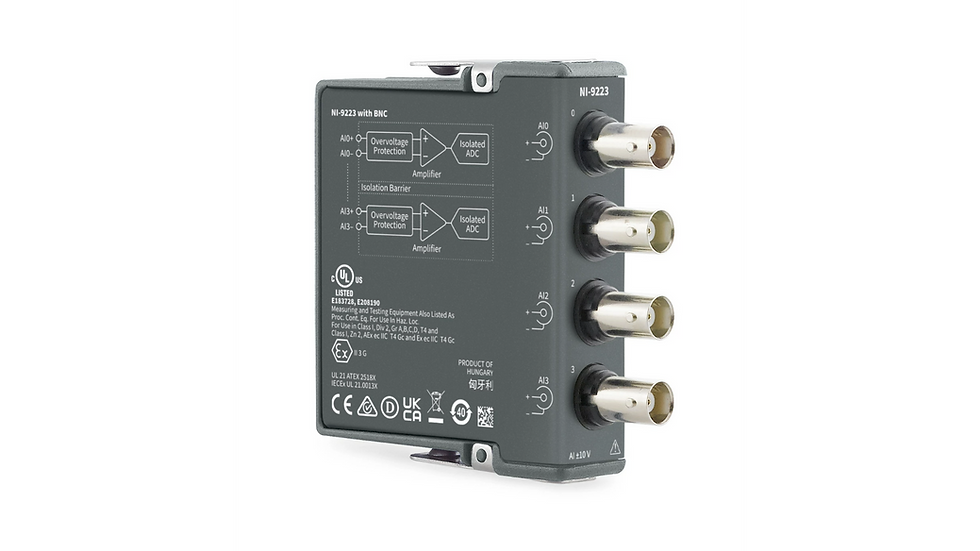

NI-9223 | 781398-01
NI-9223
C-Series Module, Analog Voltage In
4 ch, +/-10 V, 1MS/s, 16 bit
SKU: 781398-01
Stock Status: In-Stock Ready-to-Ship as of 10-14-2026
Cyth:
$3,518.00
In Stock
Manufacturer:
$0.00
stock
Distributor 1:
$3841.88
Out of Stock
Distributor 2:
$3588.36
In Stock
Price: $3,518.00
Lifecycle: Active
The NI-9223 (781398-01) C series voltage input module that performs differential analog input. This module is well suited for applications such as ballistics, impact, and blast wave testing. The NI-9223 can sample at the maximum sample rate per channel while the module next to it samples at a much slower rate, which is ideal for mixed-measurement test systems.
- 4 differential analog input channels
- 16bit ADC resolution, simultaneous sampling
- 1MS/s/ch sample rate
- Analog input voltage range: -10V to 10V
- 2-position screw terminal connectors
- 60VDC channel to channel isolation
