NI-9217 | 779592-01
NI-9217
C-Series Module, RTD
PT100, 24 bit, 100S/s/ch, 4 ch
SKU: 779592-01
Stock Status: In-Stock Ready-to-Ship as of 06-24-2026
Cyth:
$1,163.00
In Stock
Manufacturer:
$0.00
stock
Distributor 1:
$1308.38
In Stock
Distributor 2:
$0
Out of Stock
Price: $1,163.00
Complimentary engineering support with every purchase
Lifecycle: Active

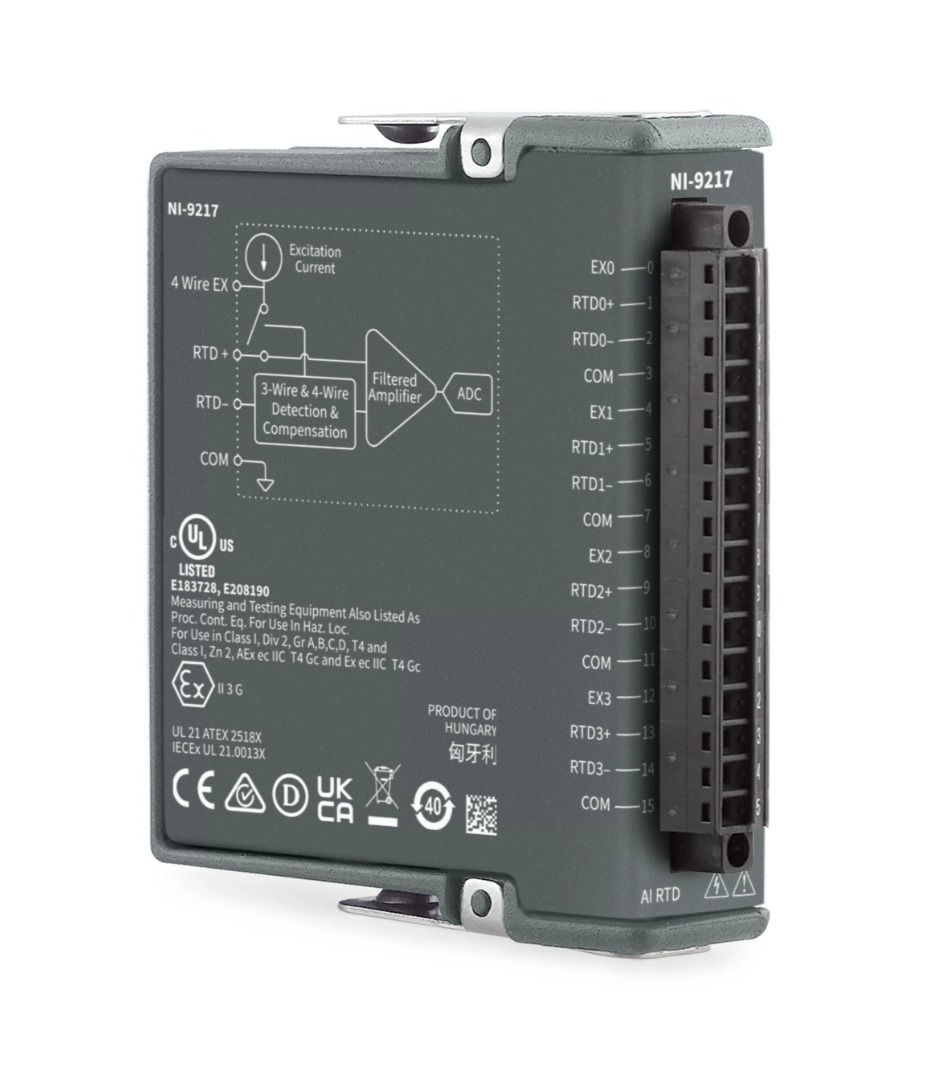

The NI-9217 (779592-01) is a resistance temperature detector (RTD) input module. You can configure the NI-9217 for two sample rate modes: high sample rate or high resolution. The NI-9217 is compatible with 3- and 4-wire RTD measurements, and it automatically detects the type of RTD (3- or 4-wire) connected to the channel and configures each channel for the appropriate mode. The module provides per channel current excitation. The NI-9217 features calibration and includes a channel-to-earth ground double isolation barrier for safety, noise immunity, and a high common-mode voltage range.
SKU: 779592-01
In-Stock Ready-to-Ship
