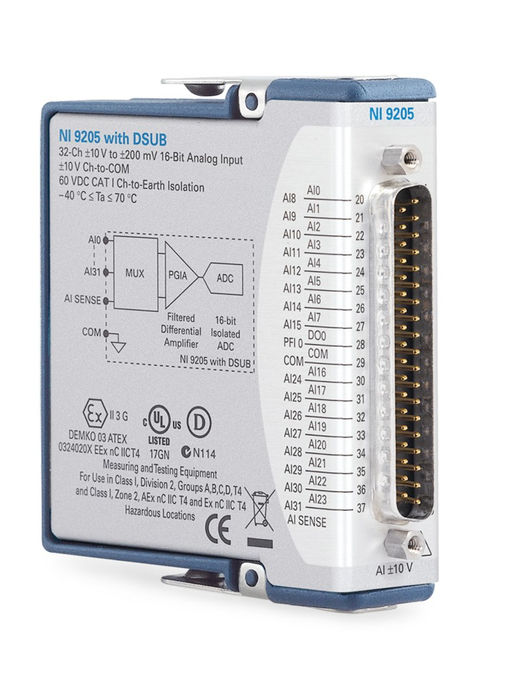

NI-9205 | 779357-01
NI-9205
C-Series Module, Analog Voltage In
32 ch, +/- 10 V, 250 kS/s, 16 bit
SKU: 779357-01
Stock Status: In-Stock Ready-to-Ship as of 08-12-2026
Cyth:
$1,763.00
In Stock
Manufacturer:
$0.00
stock
Distributor 1:
$1983.38
In Stock
Distributor 2:
$0
Out of Stock
Price: $1,763.00
Lifecycle: Active
The NI-9205 (779357-01) performs single-ended or differential analog inputs, with four programmable input ranges for each. It is an effective combination of channel count and speed at a low price for an economical multifunction system. You can choose from four programmable input ranges. To protect against signal transients, the NI-9205 includes up to 60 V of overvoltage protection between input channels and common. In addition, the NI-9205 also includes a channel-to-earth ground double isolation barrier for safety, noise immunity, and high common-mode voltage range. It is rated for 1,000 Vrms transient overvoltage protection.
SKU: 779357-01
In-Stock Ready-to-Ship
