PXI Module, Source-Measure Unit
SMUs combine a precision power supply and a meter in one module. They can both source and measure voltage or current with very fine resolution.
Specs include maximum voltage and current, lowest measurable current range, and four-quadrant operation (source or sink). These allow both powering a device and measuring its response at the same time.
In PXI, SMUs integrate with other modules for device characterization, I-V sweeps, and parametric testing. They are widely used for semiconductors, sensors, and precision components.
Hide obsolete product
132503-02
Product Name
$685.00
ECUTS B3-2 PXIe-4139 Cable
784000-01
Product Name
$910.00
SA-413T Triaxial Adapter for PXIe-4138/9 SMUs
787170-01
Product Name
$5,943.00
PXIe-4135 Calibration Accessories
142998-08
Product Name
$30.00
Safety Interlock Cable for PXIe-4135/6/7 SMUs, 8 in
784484-01
Product Name
$98.00
Screw Terminal Connector Kit for PXIe-4135 SMU
781974-01
Product Name
$144.00
Screw Terminal Connector Kit for PXIe-414X SMUS
786818-01
Product Name
$201.00
SA-413B Banana Jack Adapter for PXIe-4136/7/8/9 SMUs
779647-30
PXI-4130
$6,204.00
1 ch, 4-Quadrant, +/- 300mA, +/- 20V, 40W
No Longer Manufactured
780558-01
PXI-4132
$7,456.00
1 ch, 4-Quadrant, +/- 100mA, +/- 100V, 2W
No Longer Manufactured
783762-01
PXIe-4135
$12,835.00
1 ch, +/- 200 V, +/- 3 A, 10 fA, SourceAdapt
783760-01
PXIe-4136
$8,055.00
1 ch, +/- 200 V, +/- 1 A, 100 fA
In Stock, Ready to Ship
783761-01
PXIe-4137
$11,385.00
1 ch, +/- 200 V, +/- 3 A, 100 fA, SourceAdapt
In Stock, Ready to Ship
782856-01
PXIe-4138
$8,055.00
1 ch, +/- 60 V, +/- 3 A, 1 pA
No Longer Manufactured
782856-02
PXIe-4139
$11,385.00
1 ch, +/- 60 V, +/- 10 A, 100 fA, SourceAdapt
No Longer Manufactured
781742-01
PXIe-4140
$12,350.00
4 ch, +/- 10 V, +/- 100 mA, 10 pA
In Stock, Ready to Ship
781743-01

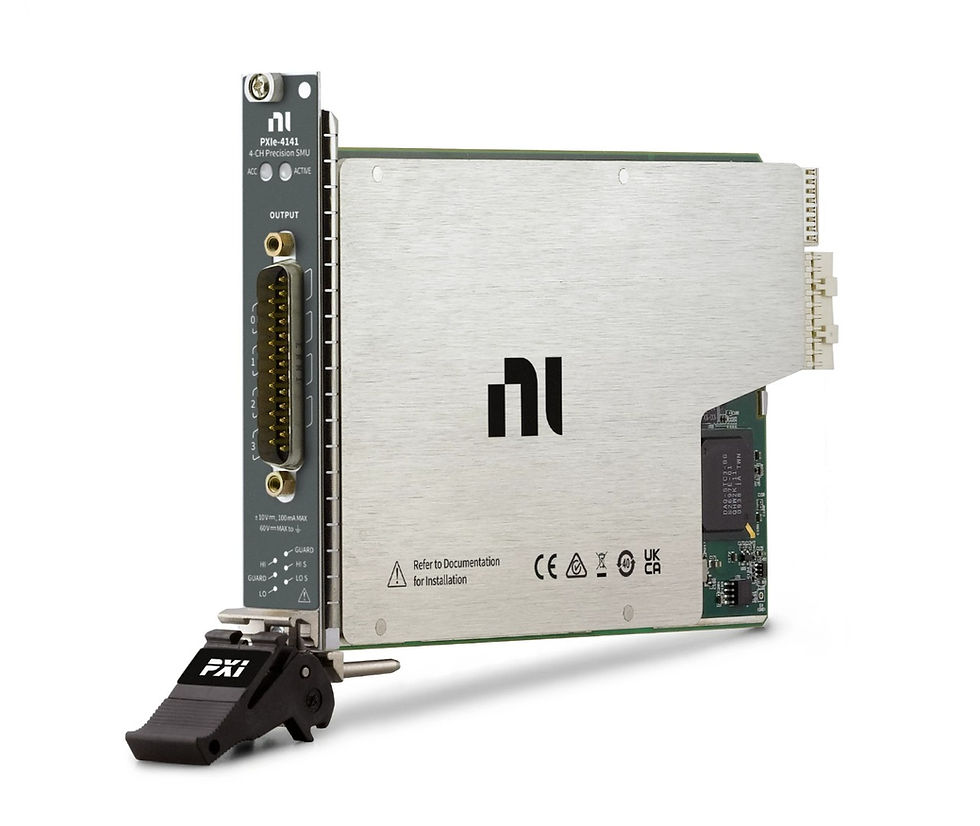

PXIe-4141
$20,841.00
4 ch, +/- 10 V, +/- 100 mA, 100 pA
782430-01
PXIe-4142
$16,774.00
4 ch, +/- 24 V, +/- 150 mA, 10 pA
In Stock, Ready to Ship
782431-01
PXIe-4143
$25,276.00
4 ch, +/- 24 V, +/- 150 mA, 100 pA
In Stock, Ready to Ship
782432-01
PXIe-4144
$16,774.00
4 ch, +/- 6 V, +/- 500 mA, 150 pA
In Stock, Ready to Ship
782435-01
PXIe-4145
$25,276.00
4 ch, +/- 6 V, +/- 500 mA, 15 pA
786888-01
PXIe-4147
$31,569.00
4 ch, +/- 8 V, +/- 3 A, 100 pA
785680-01
PXIe-4162
$36,486.00
12 ch, +/- 24 V, +/- 100 mA, 100 pA
784483-01
PXIe-4163
$42,141.00
24 ch, +/- 24 V, +/- 100 mA, 10 pA
In Stock, Ready to Ship
