PXI Module, Oscilloscope
PXI Oscilloscope modules are the PXI version of the familiar benchtop oscilloscope. They capture voltage waveforms over time, letting you see and analyze how signals change.
Their main specs are bandwidth, sample rate, resolution, and channel count. Higher bandwidth and sample rates let you measure faster signals, while more channels allow you to look at multiple signals at once.
In a PXI system, these scopes can be synchronized with other instruments like signal generators or DMMs. This makes them ideal for automated testing where timing between instruments matters.
Hide obsolete product
782058-01
PXIe-5186
$59,670.00
12.5 GS/s, 5 GHz BW, 8 bits
Secondary Text
No Longer Manufactured
782057-01
PXIe-5185
$40,914.00
12.5 GS/s, 3 GHz BW, 8 bits
Secondary Text
No Longer Manufactured
782622-01
PXIe-5162
$31,157.00
5 GS/s, 1.5 GHz BW, 10 bits
Secondary Text
In Stock
779153-01

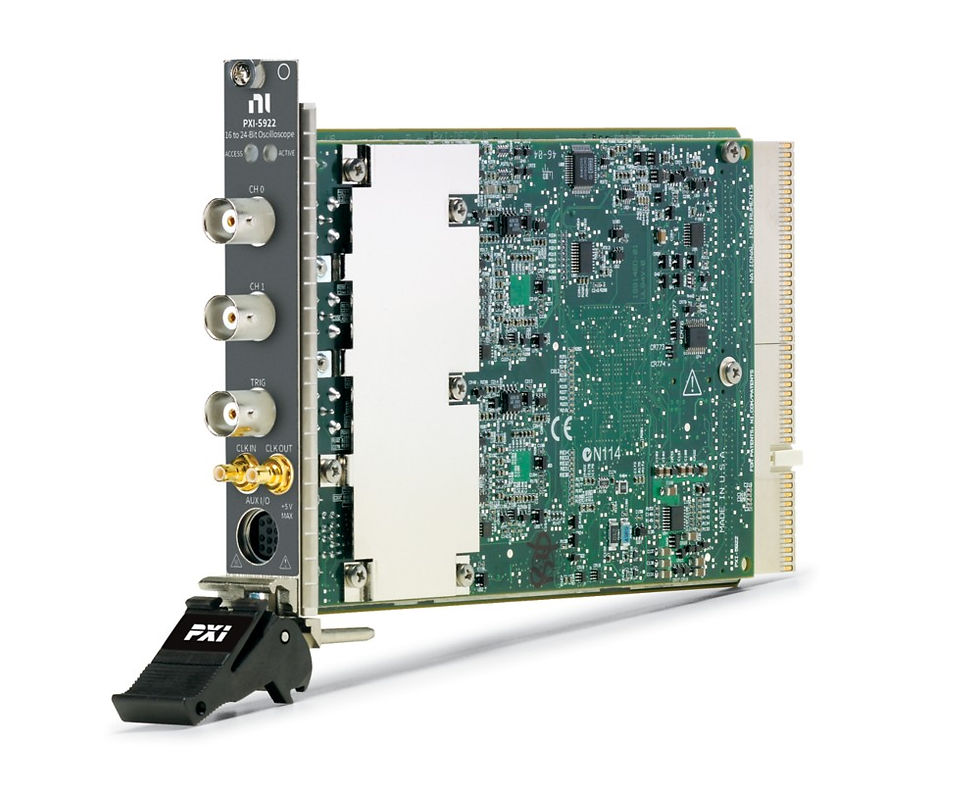

PXI-5922
$22,587.00
15 MS/s, 6 MHz BW, 24 bits
Secondary Text
In Stock
784183-01

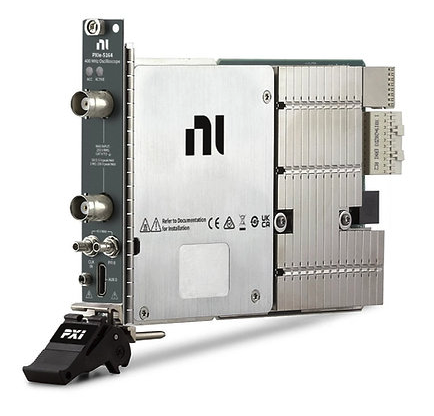

PXIe-5164
$33,396.00
1 GS/s, 400 MHz BW, 14 bits
Secondary Text
In Stock
782621-01
PXIe-5160
$19,030.00
2.5 GS/s, 500 MHz BW, 10 bits
Secondary Text
In Stock
784224-01

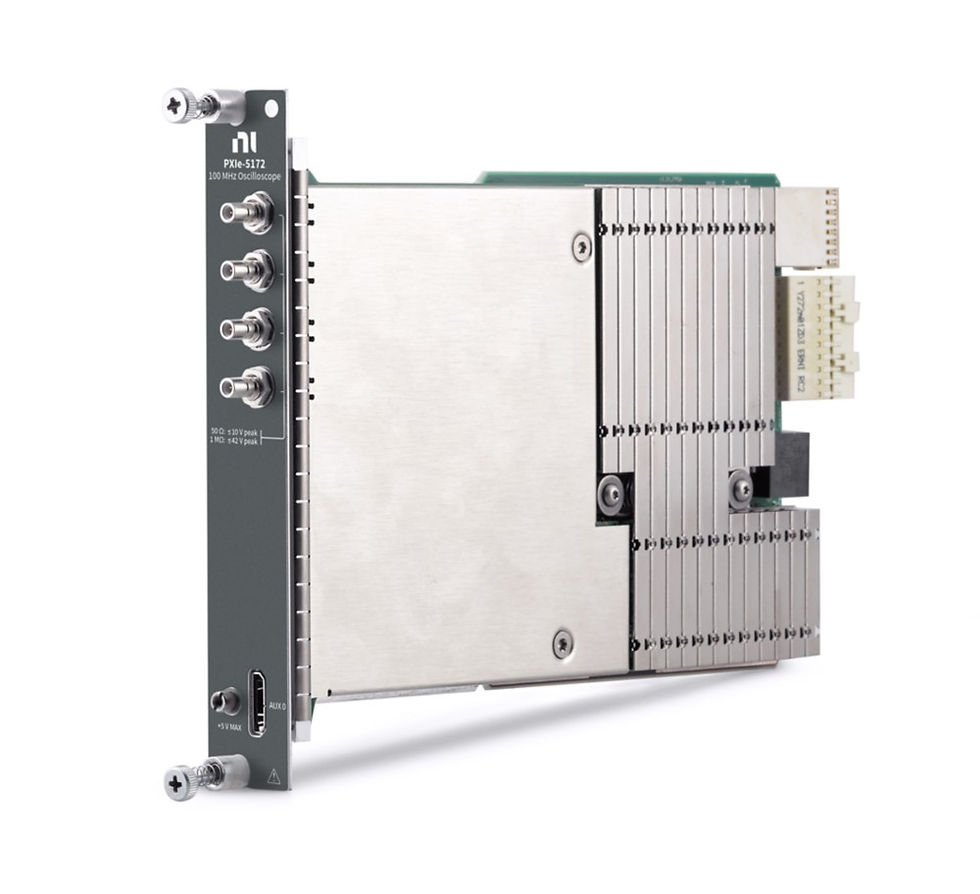

PXIe-5172
$21,895.00
Product Details
Secondary Text
In Stock
783692-01
PXIe-5171
$29,457.00
250 MS/s, 250 MHz BW, 14 bits
Secondary Text
In Stock
785182-01
PXIe-5163
$25,165.00
1 GS/s, 200 MHz BW, 14 bits
Secondary Text
In Stock
783690-01

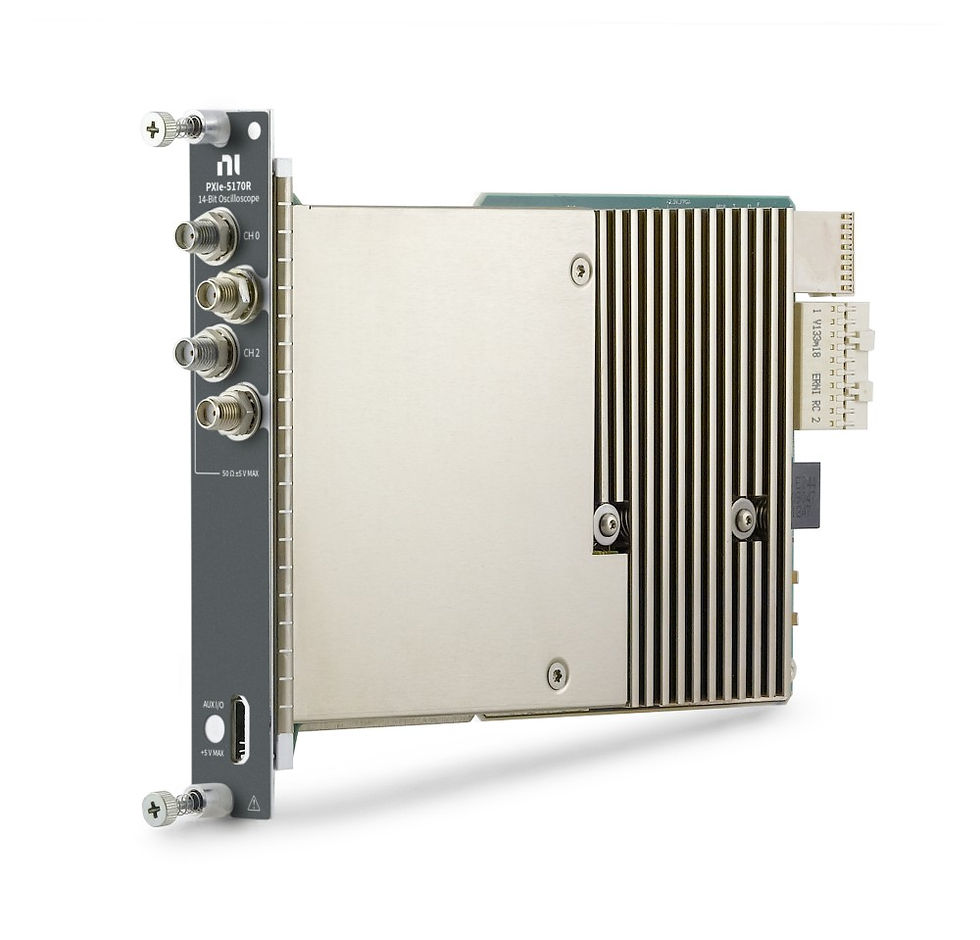

PXIe-5170
$16,852.00
250 MS/s, 100 MHz BW, 14 bits
Secondary Text
In Stock
779967-01
PXIe-5122
$16,609.00
250 MS/s, 125 MHz BW, 8 bits
Secondary Text
In Stock
786375-01

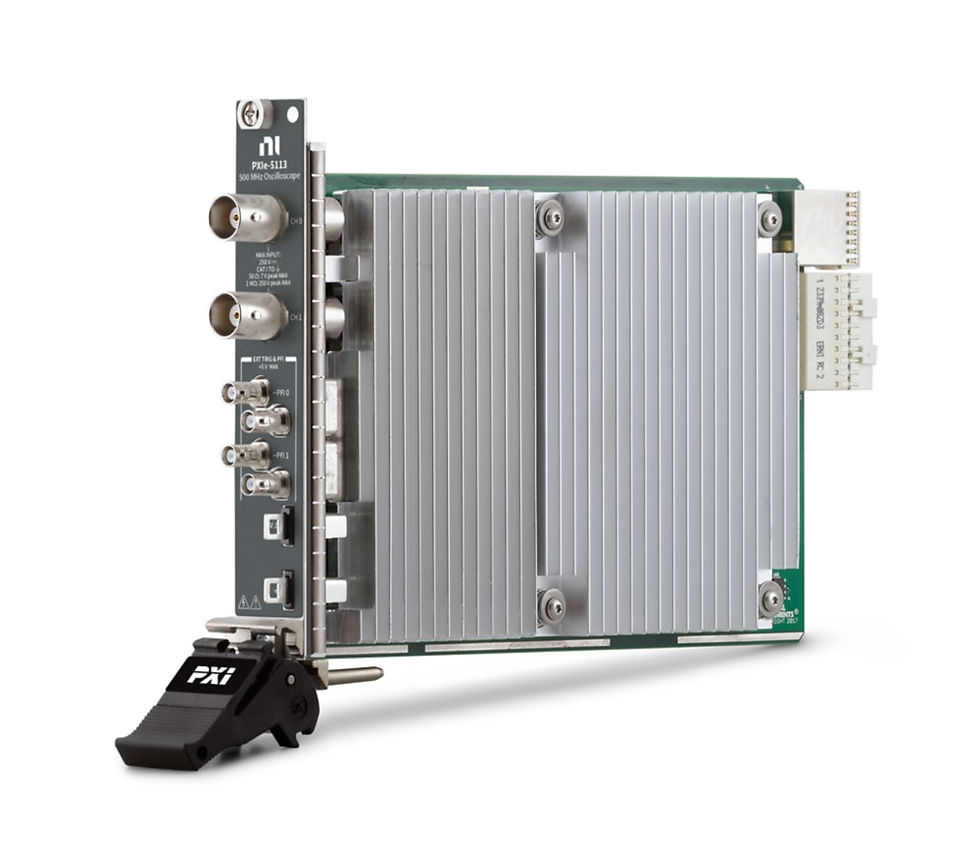

PXIe-5113
$13,942.00
3 GS/s, 500 MHz BW, 8 bits
Secondary Text
In Stock
783590-01
PXIe-5105
$11,865.00
60 MS/s, 60 MHz BW, 12 bits
Secondary Text
In Stock
780412-01
PXIe-5622
$17,699.00
1 ch, 16 bit, 150 MS/s, 64 MB
Secondary Text
No Longer Manufactured
785769-01
PXIe-5111
$9,278.00
3 GS/s, 350 MHz BW, 8 bits
Secondary Text
In Stock
783591-01
PXIe-5114
$5,934.00
250 MS/s, 125 MHz BW, 8 bits
Secondary Text
In Stock
785767-01
PXIe-5110
$2,167.00
1 GS/s, 100 MHz BW, 8 bits
Secondary Text
In Stock
780166-01
PXI-5900
$5,248.00
2 ch PXI Differential Amplifier
Secondary Text
In Stock
