PXI DAQ Modules
The NI PXI DAQ Modules provide high-performance, modular data acquisition for precise measurement of real-world signals in automated test and research systems. Built on the PXI Express platform, these modules deliver high accuracy, fast data throughput, and deterministic timing for synchronized, multi-channel measurements. NI PXI DAQ modules support a wide range of I/O types, including analog input, analog output, digital I/O, and counter/timer functions. Their tight integration with the PXI backplane enables precise synchronization with other PXI instruments such as RF devices, oscilloscopes, and motion controllers, making them ideal for complex, multi-domain test applications. PXI DAQ Modules from NI are widely used in electronics validation, structural and environmental testing, automotive and aerospace systems, hardware-in-the-loop (HIL) simulation, and research laboratories. The modular PXI architecture allows engineers to build scalable, high-channel-density measurement systems that evolve with changing requirements while maintaining accuracy and reliability.

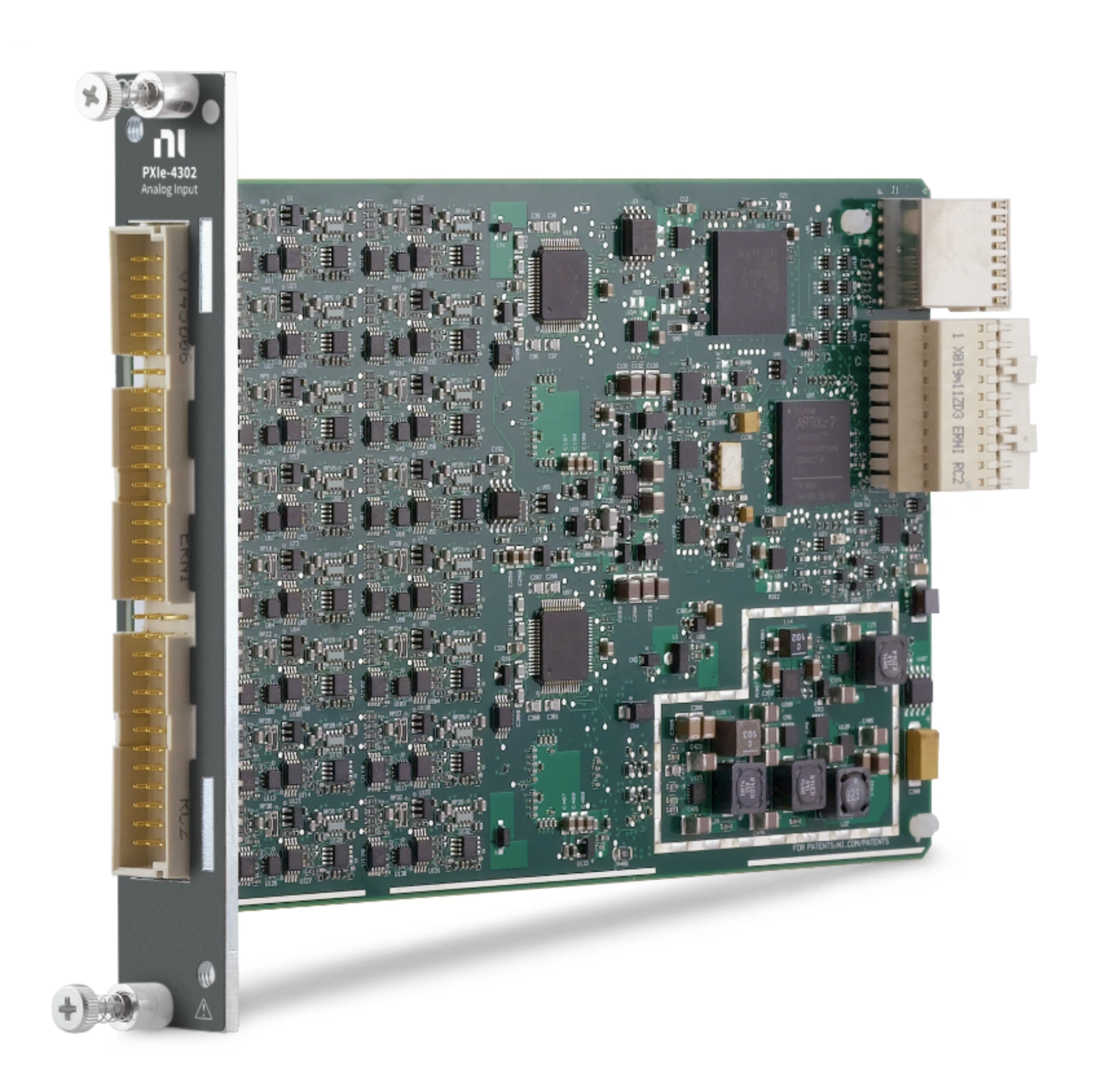

PXI Module, Analog Input
High-speed, high-resolution voltage or sensor measurements with PXI's synchronized timing for multi-channel test setups.

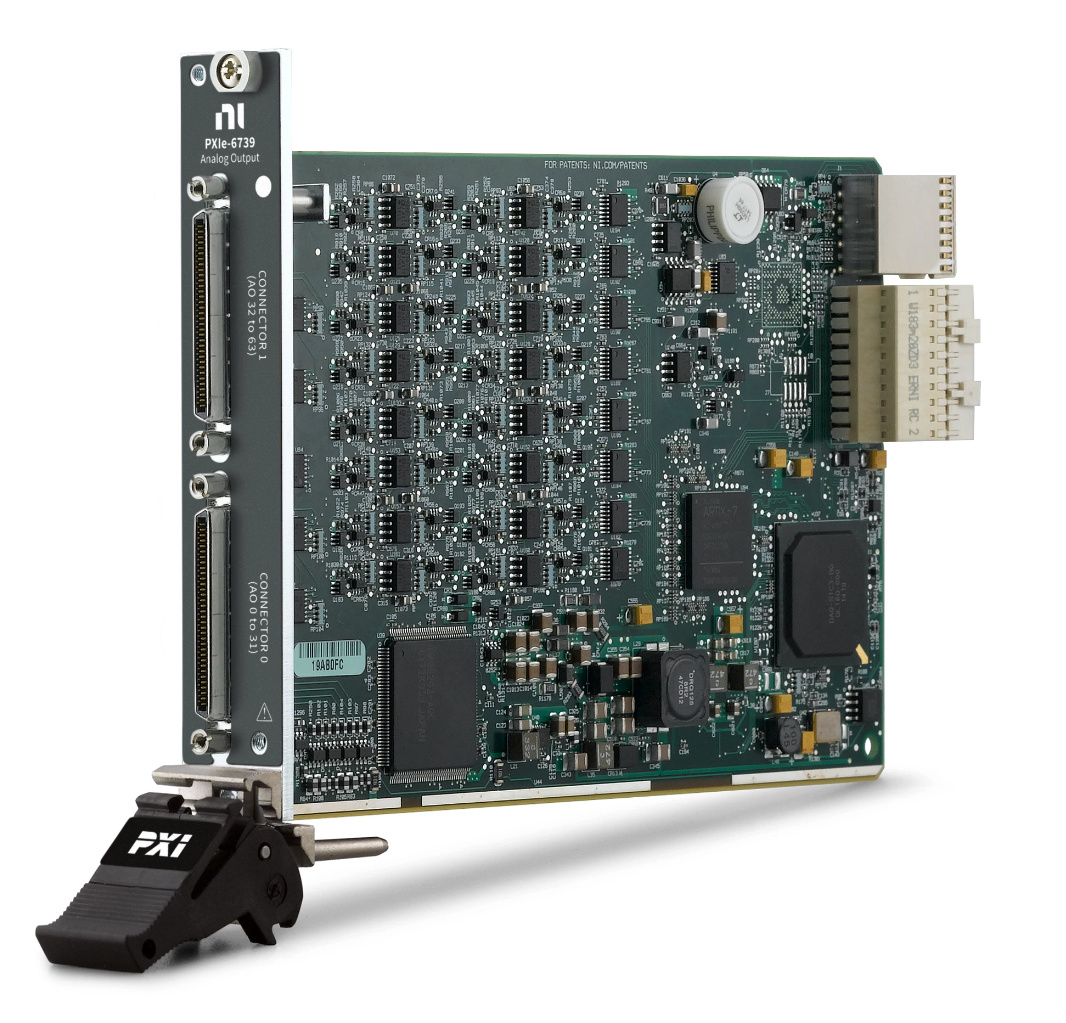

PXI Module, Analog Output
Precision voltage or current generation with deterministic PXI timing for waveform, stimulus, or control applications.

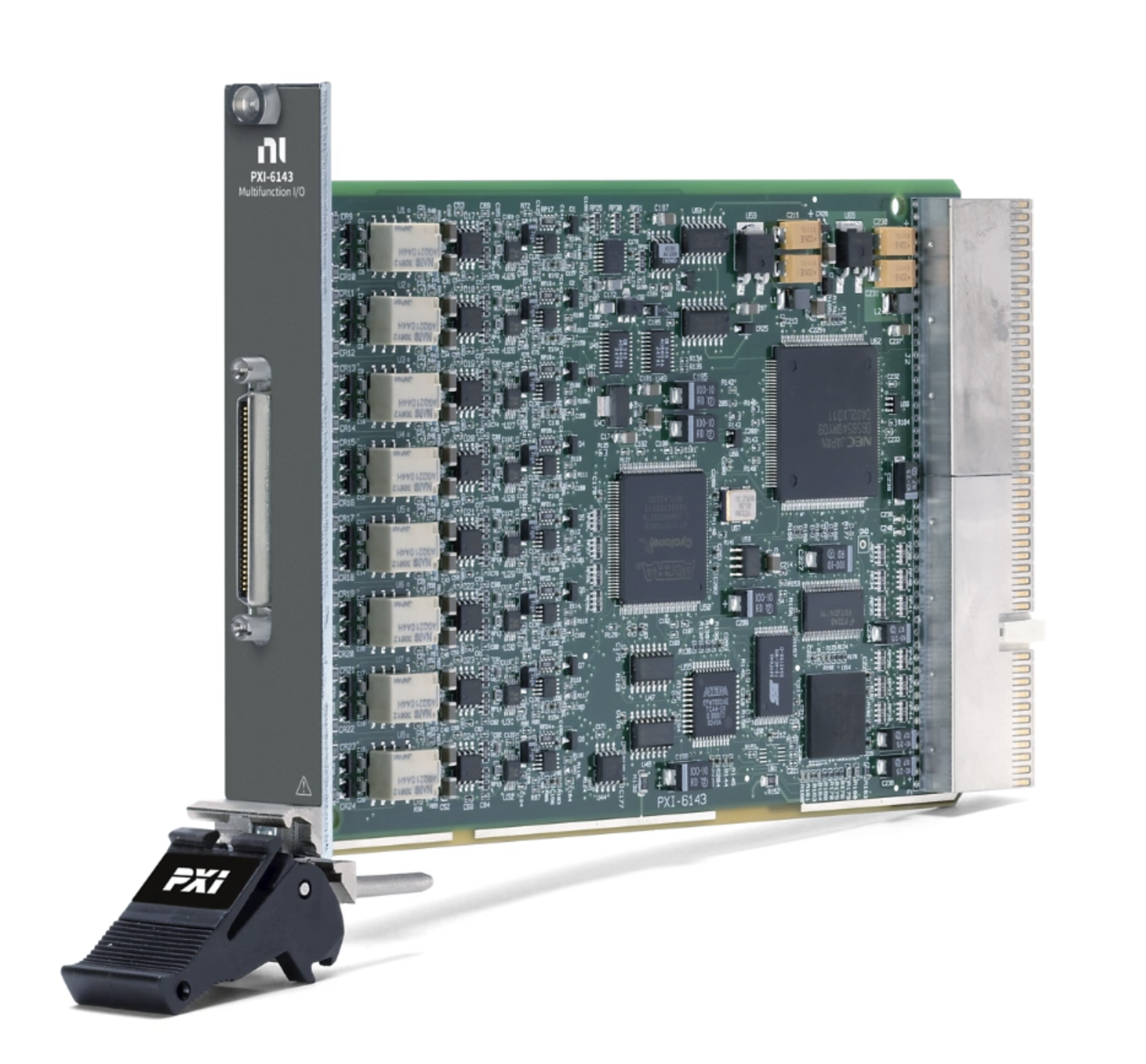

PXI Module, DAQ MIO M-Series
Versatile analog input/output with digital I/O, counters, and PXI integration for general-purpose test.
PXI Module, DAQ MIO S-Series
Simultaneous sampling analog I/O for phase-critical and transient signal measurements.

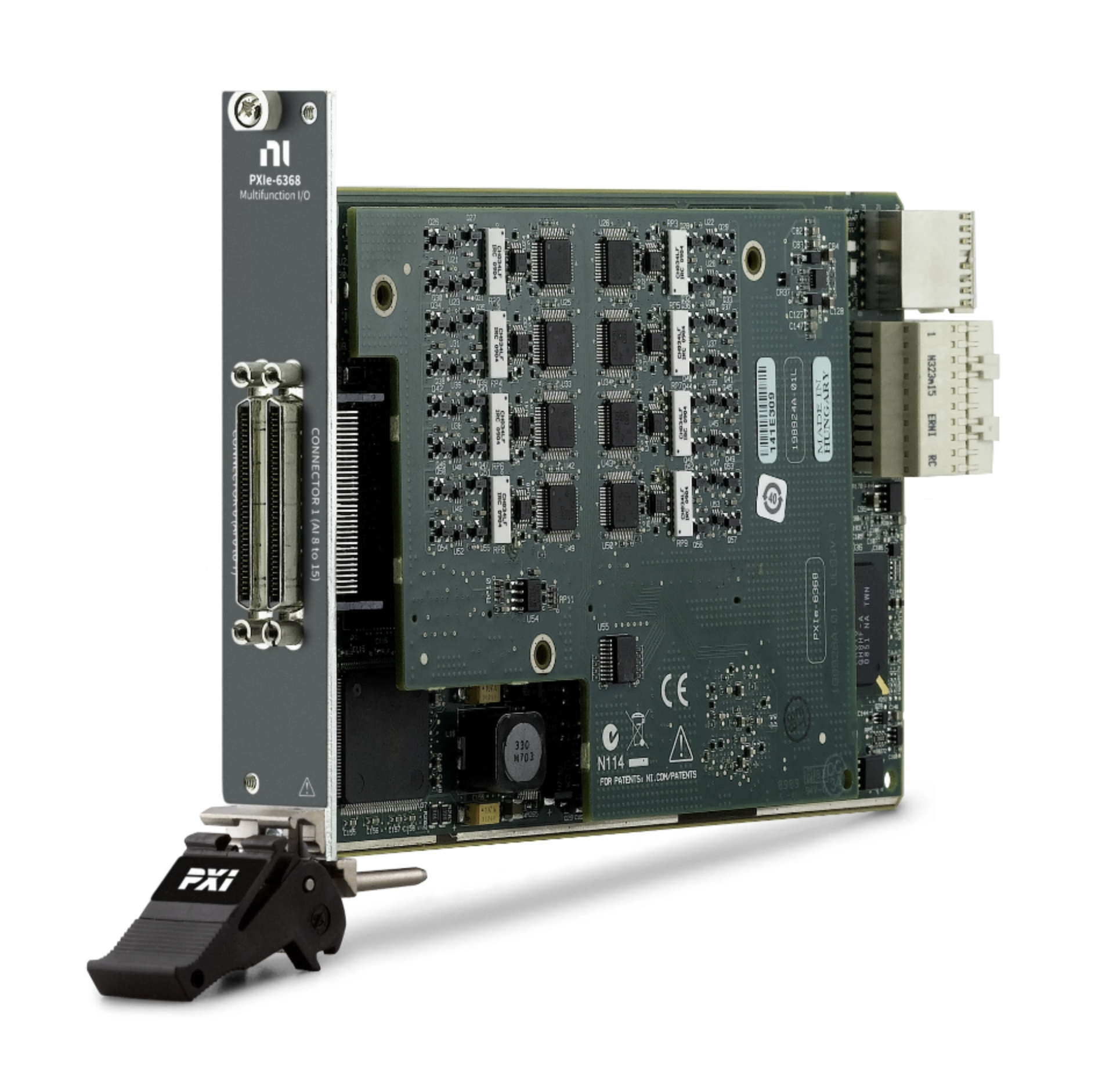

PXI Module, DAQ MIO X-Series
Advanced timing and triggering with high-throughput, simultaneous, and multiplexed I/O.

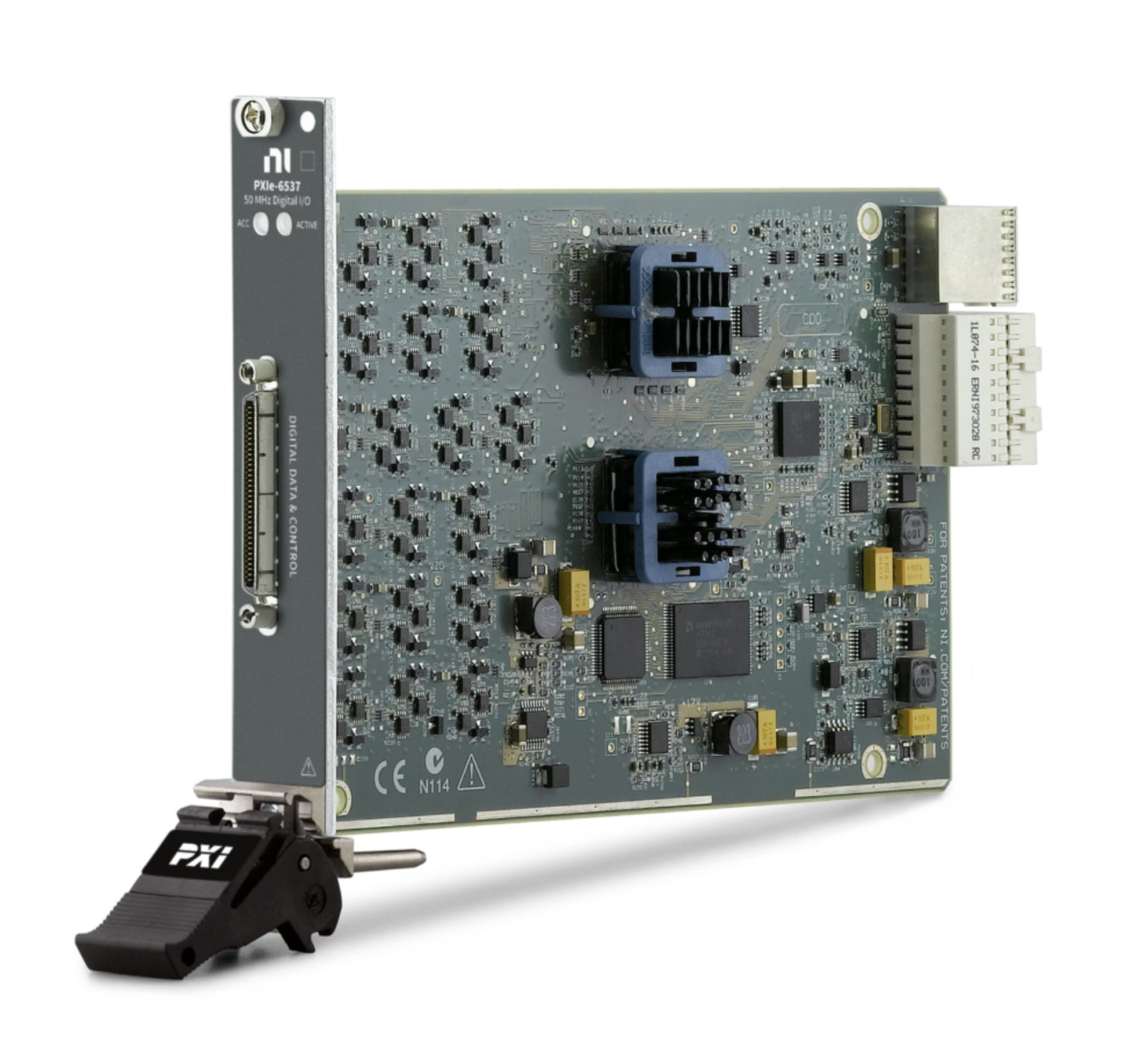

PXI Module, DAQ Digital IO
Flexible high-speed or high-voltage digital interfacing for PXI test systems.

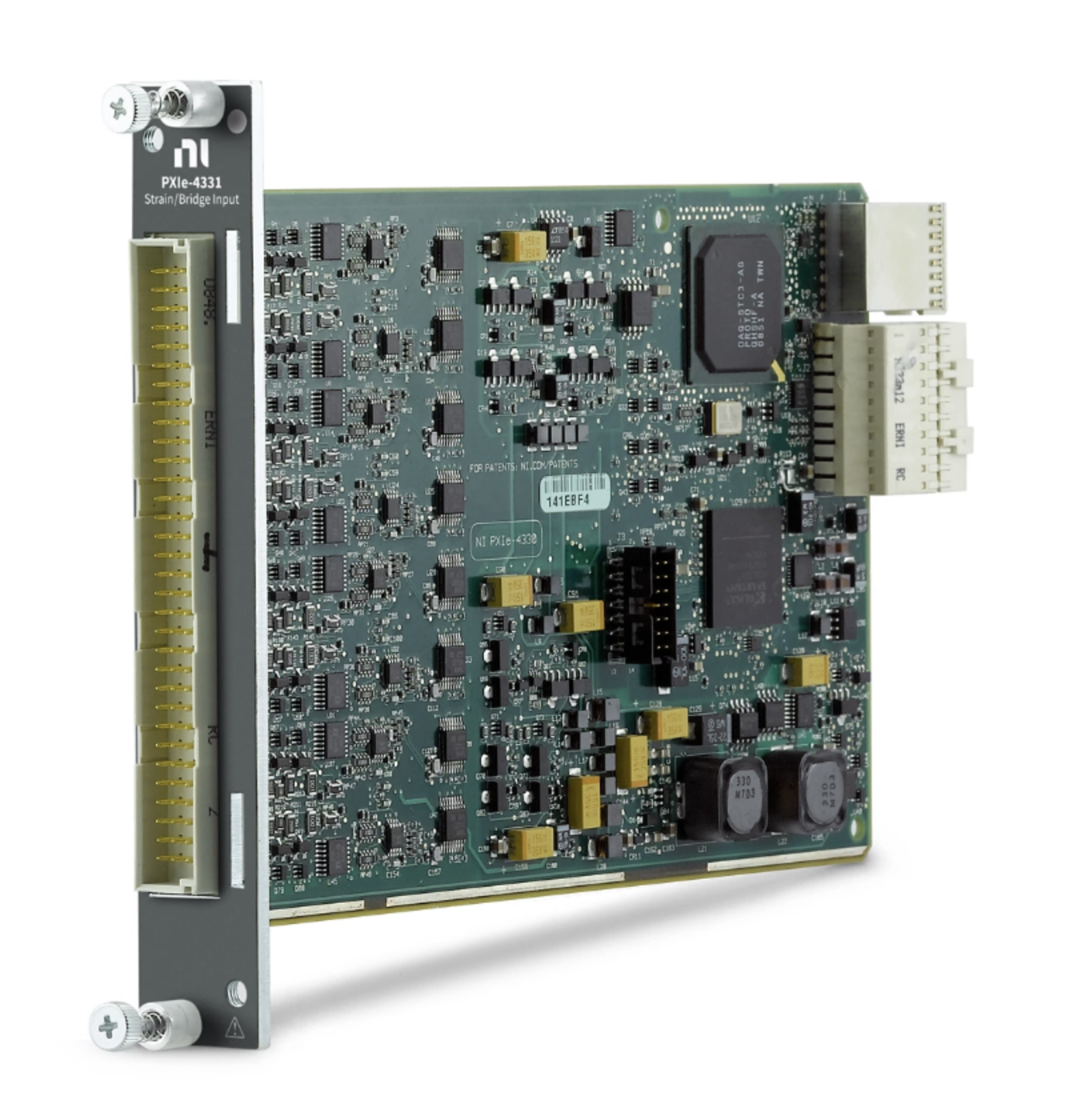

PXI Module, Strain/Bridge
Direct connection to strain gauges and bridge-based sensors with precision measurement circuitry.

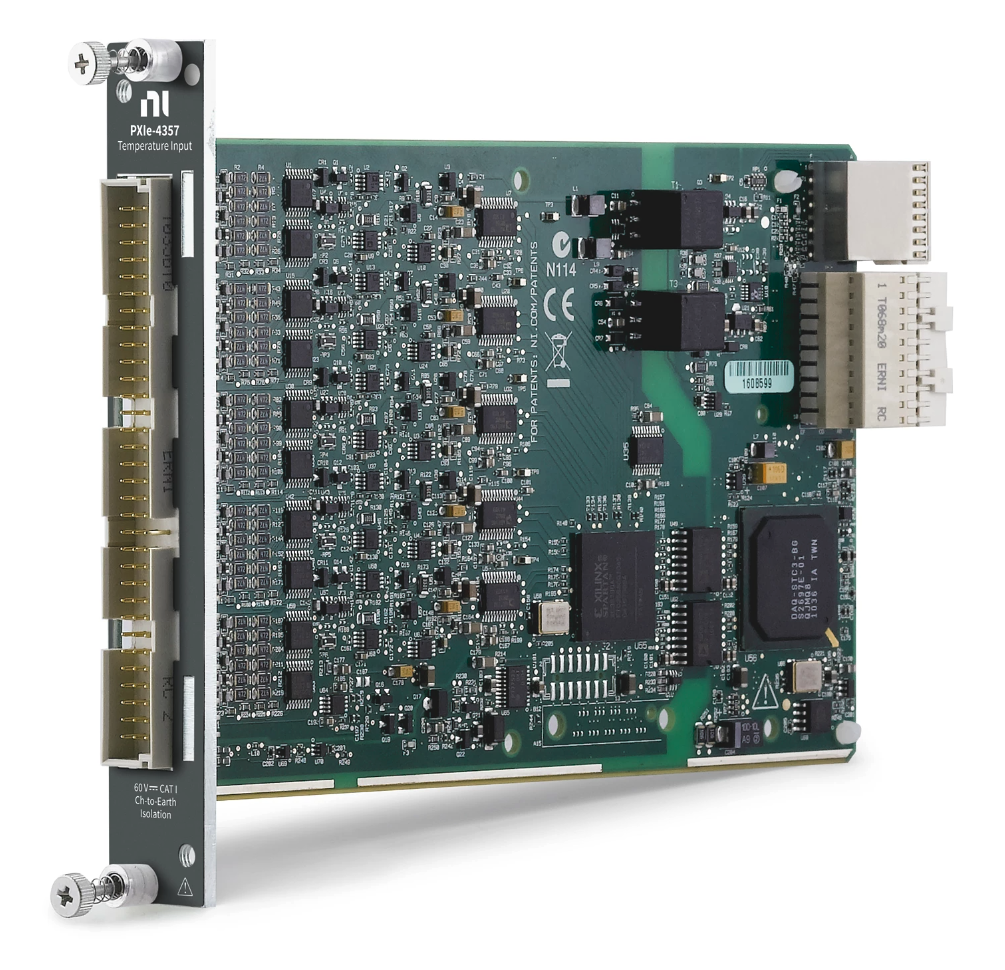

PXI Module, Temperature
Direct thermocouple, RTD, or other temperature sensor inputs with PXI timing integration.

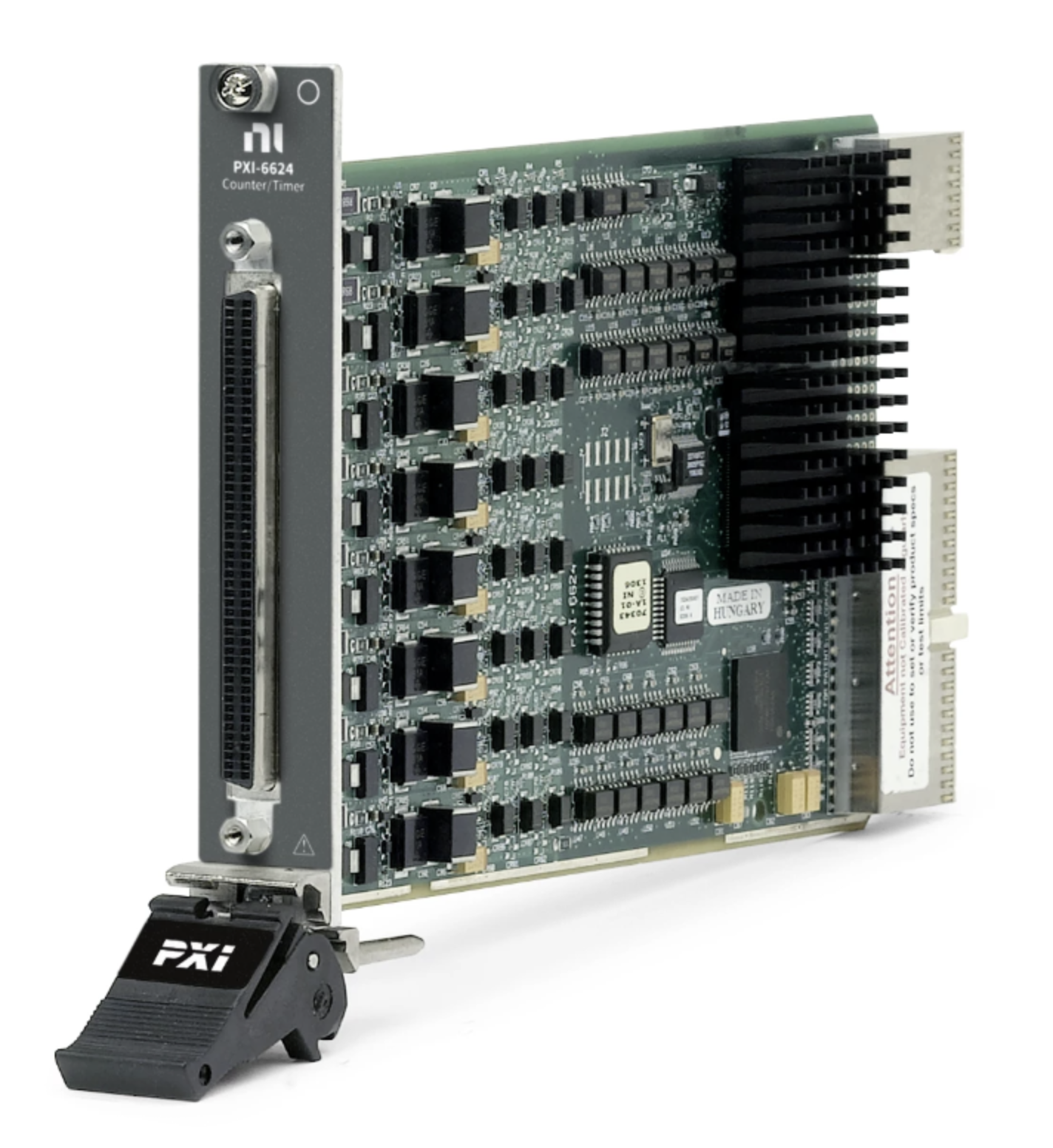

PXI Module, Counter/Timer
Hardware-timed event counting, frequency, and pulse measurement or generation with PXI synchronization.
PXI Module, Timing & Sync
Distribute clocks, triggers, and synchronization signals across PXI instruments.

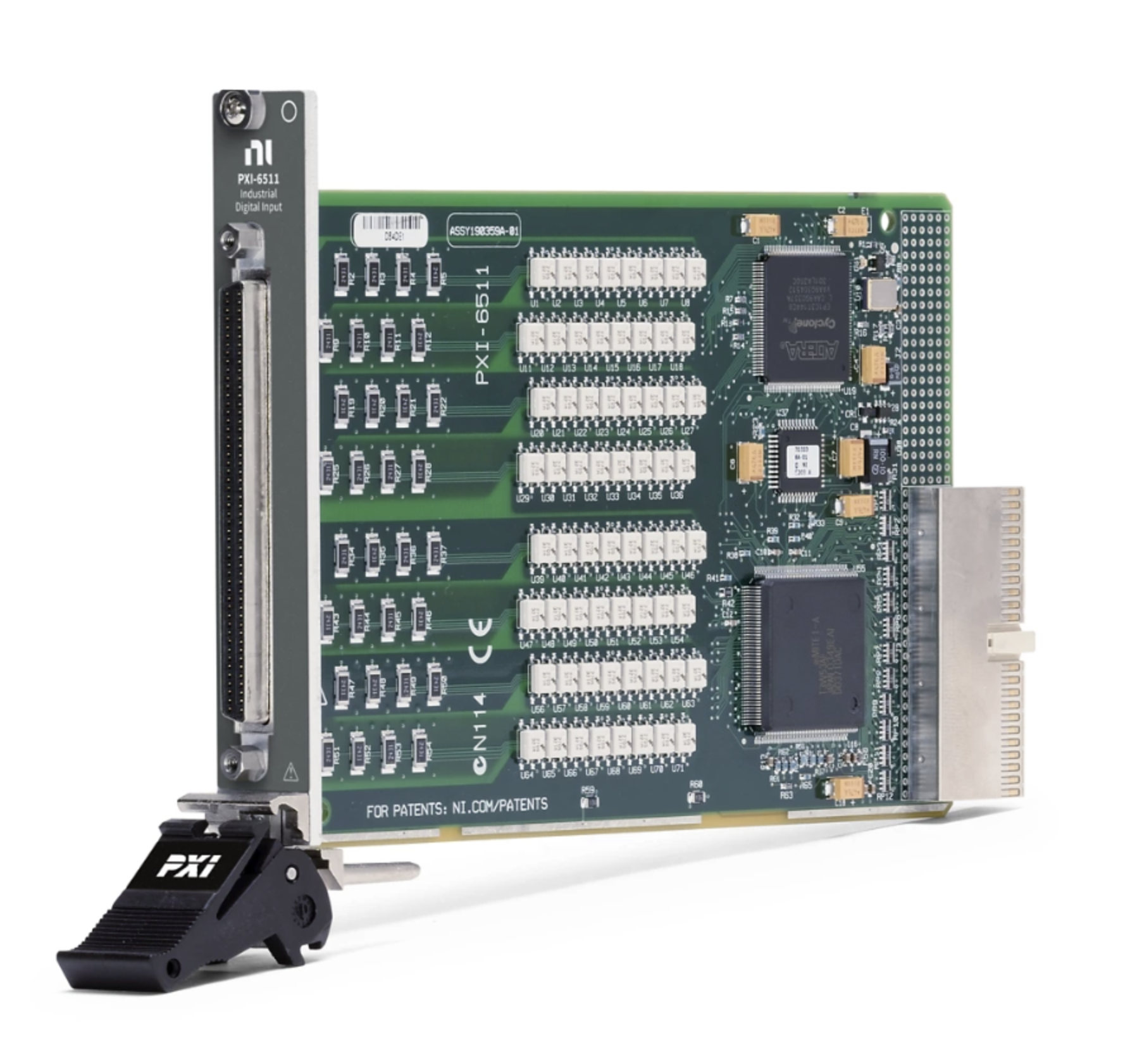

PXI Module, Industrial DIO
Isolated digital I/O for interfacing PXI systems with industrial control and automation hardware.
