PXIe-5763 | 785165-01
PXIe-5763
PXI Module, FlexRIO Digitizer
4 ch, 500 MS/s, 16 bit,DC, KU060 FPGA
SKU: 785165-01
Stock Status: Available to Order
Cyth:
$31,810.00
Out of Stock
Manufacturer:
$0.00
stock
Distributor 1:
$35786.25
Out of Stock
Distributor 2:
$31810
Out of Stock
Price: $31,810.00
Complimentary engineering support with every purchase
Lifecycle: Active

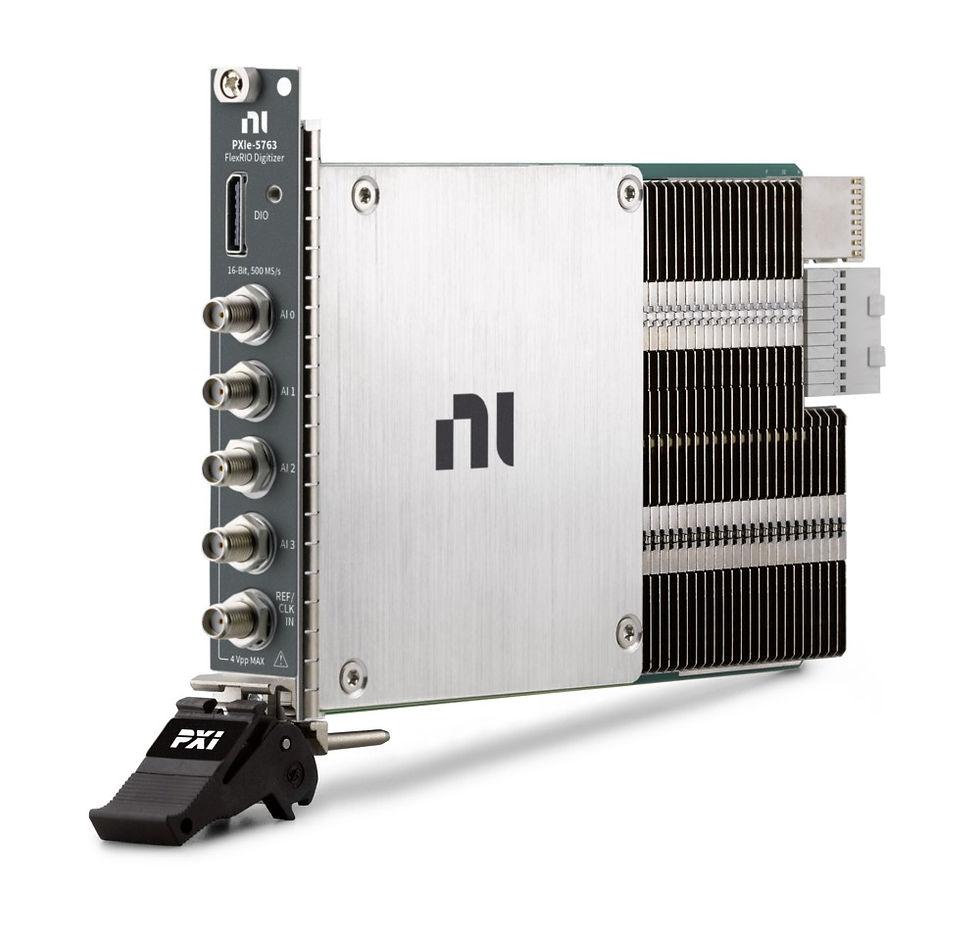

The NI PXIe-5763 (785165-01) is a PXI FlexRIO Digitizer that simultaneously samples four channels at 500 MS/s with 16 bits of resolution and features 225 MHz of analog input bandwidth. With over 73 dB of SNR, the PXIe-5763 is ideal for applications that require a wide dynamic range with a wideband digitizer. The FlexRIO driver includes support for finite and continuous streaming modes, and you can implement custom algorithms and real-time signal processing on the LabVIEW-programmable Xilinx Kintex UltraScale FPGA. Available in AC and DC coupled variants, the PXIe-5763 is ideal for both time and frequency domain applications, including radar prototyping, LIDAR, communications, microscopy, OCT, event detection, and particle physics.
