PXI Modules, Instruments
The NI PXI Instrument Modules are modular, high-performance measurement instruments designed for automated test, validation, and research applications. Built on the PXI Express platform, these modules deliver precise measurements, high data throughput, and deterministic timing in a compact, scalable form factor. NI PXI instruments cover a broad range of functions, including oscilloscopes, digital multimeters (DMMs), signal generators, RF instruments, and switching modules. Tight integration with the PXI backplane enables synchronized operation across multiple instruments, supporting complex test scenarios that demand accuracy, repeatability, and system-level coordination. PXI Instrument Modules from NI are widely used in semiconductor test, aerospace and defense, automotive electronics, communications, and advanced R&D environments. The modular PXI architecture allows engineers to build flexible, high-channel-density test systems that evolve with changing measurement requirements while maintaining long-term reliability.
PXI Module, Oscilloscope
High-bandwidth, high-sample-rate waveform capture with PXI's synchronized triggering across instruments.

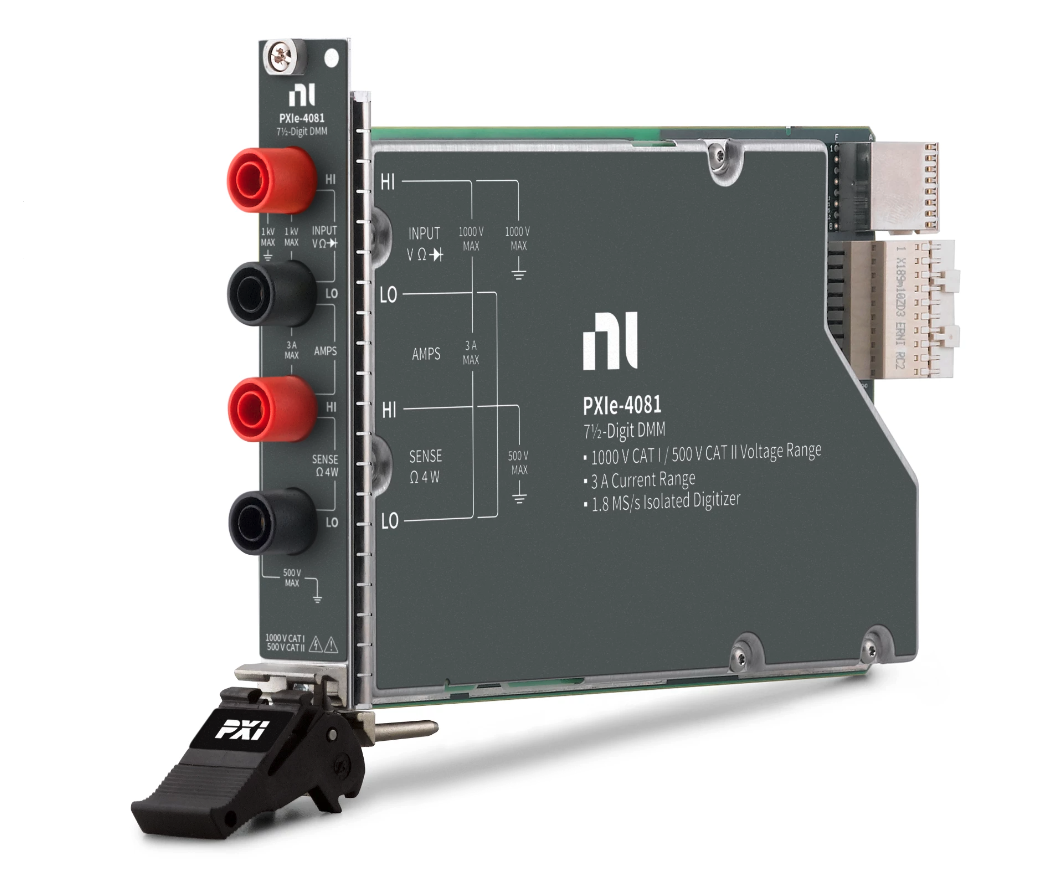

PXI Module, Digital Multimeter
Precision voltage, current, and resistance measurements with fast integration into PXI test systems.
PXI Module, Signal Generator
High-quality RF or baseband signal generation for stimulus in PXI-based automated tests.
PXI Module, Sound & Vibration
Dedicated analysis and generation for audio, acoustic, and vibration testing applications.

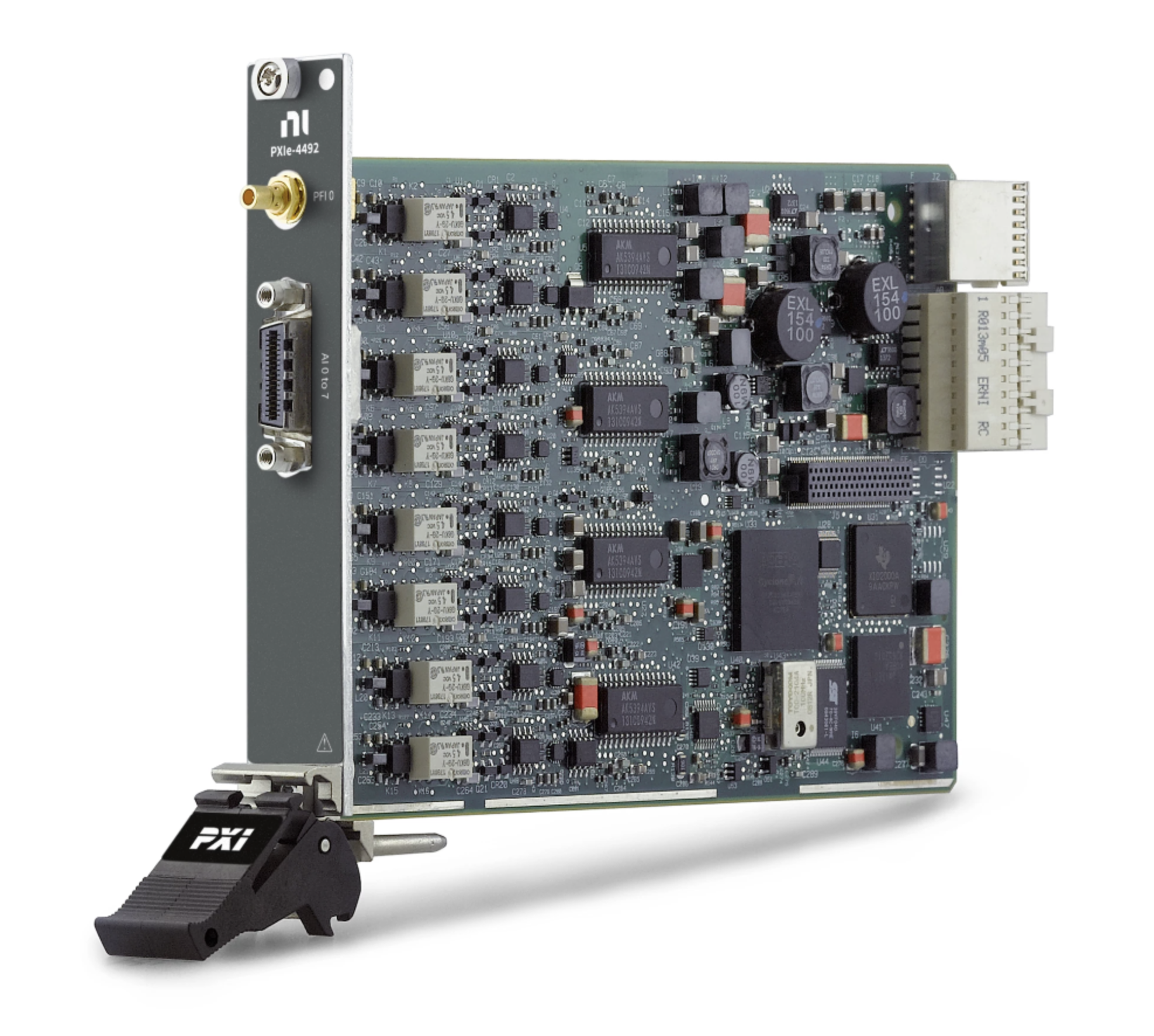

PXI Module, Dynamic Signal Acquisition
High-channel-count, high-accuracy input for dynamic and structural measurements.

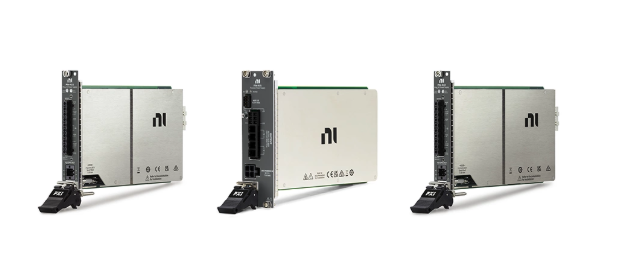

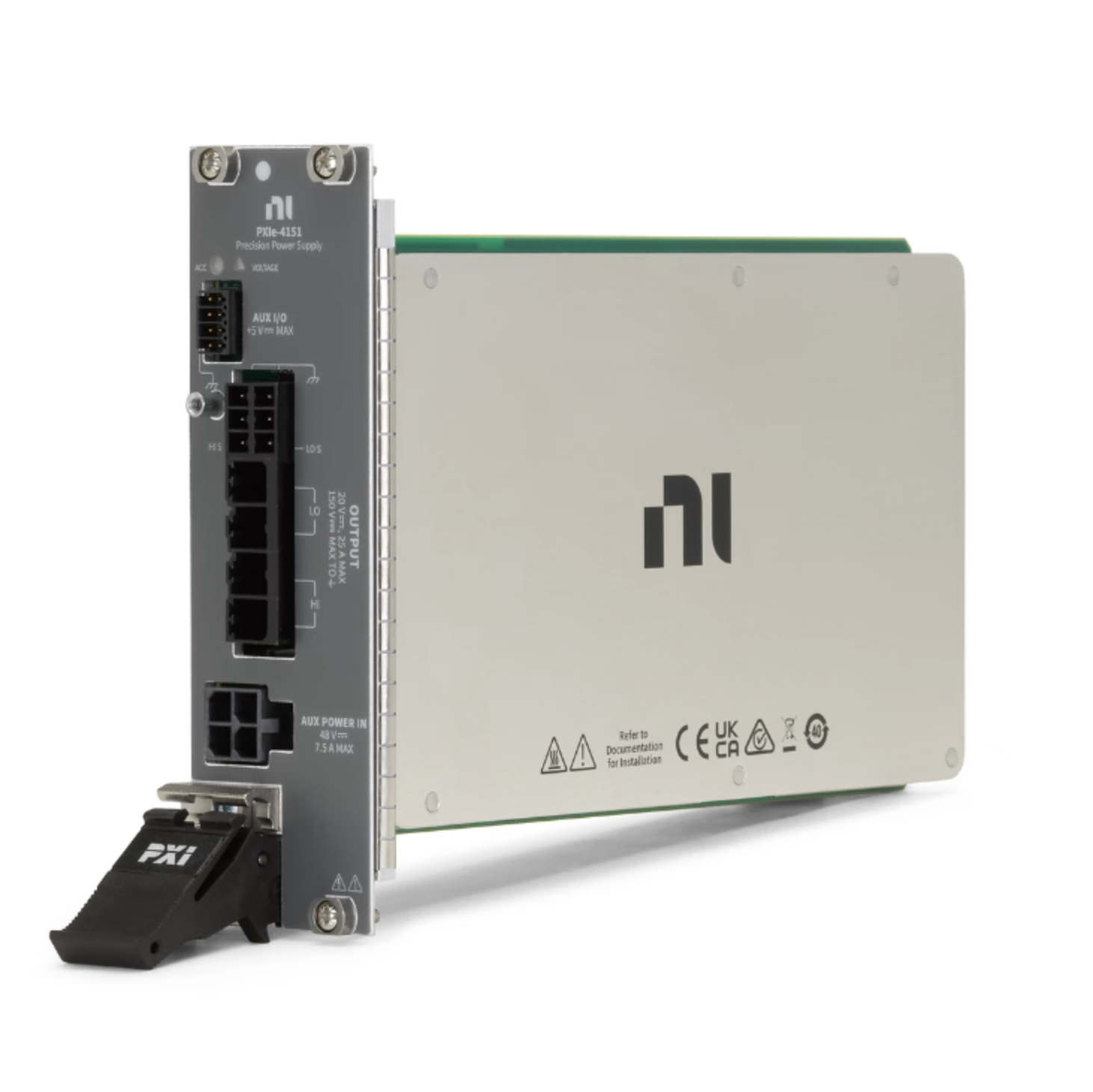

PXI Module, Power Supply
PXI power supply modules deliver programmable voltage and current with protection & synchronization, ideal for automated functional and production test systems

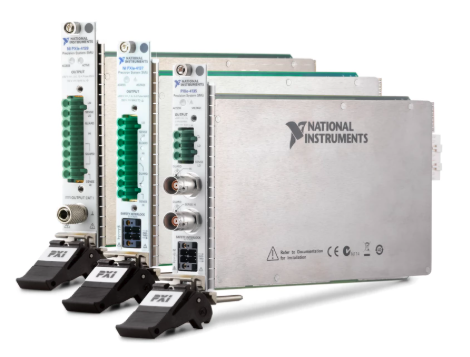

PXI Module, Source-Measure Unit
PXI source-measure unit modules source and measure voltage or current with high precision, enabling I-V sweeps and parametric testing in automated systems.

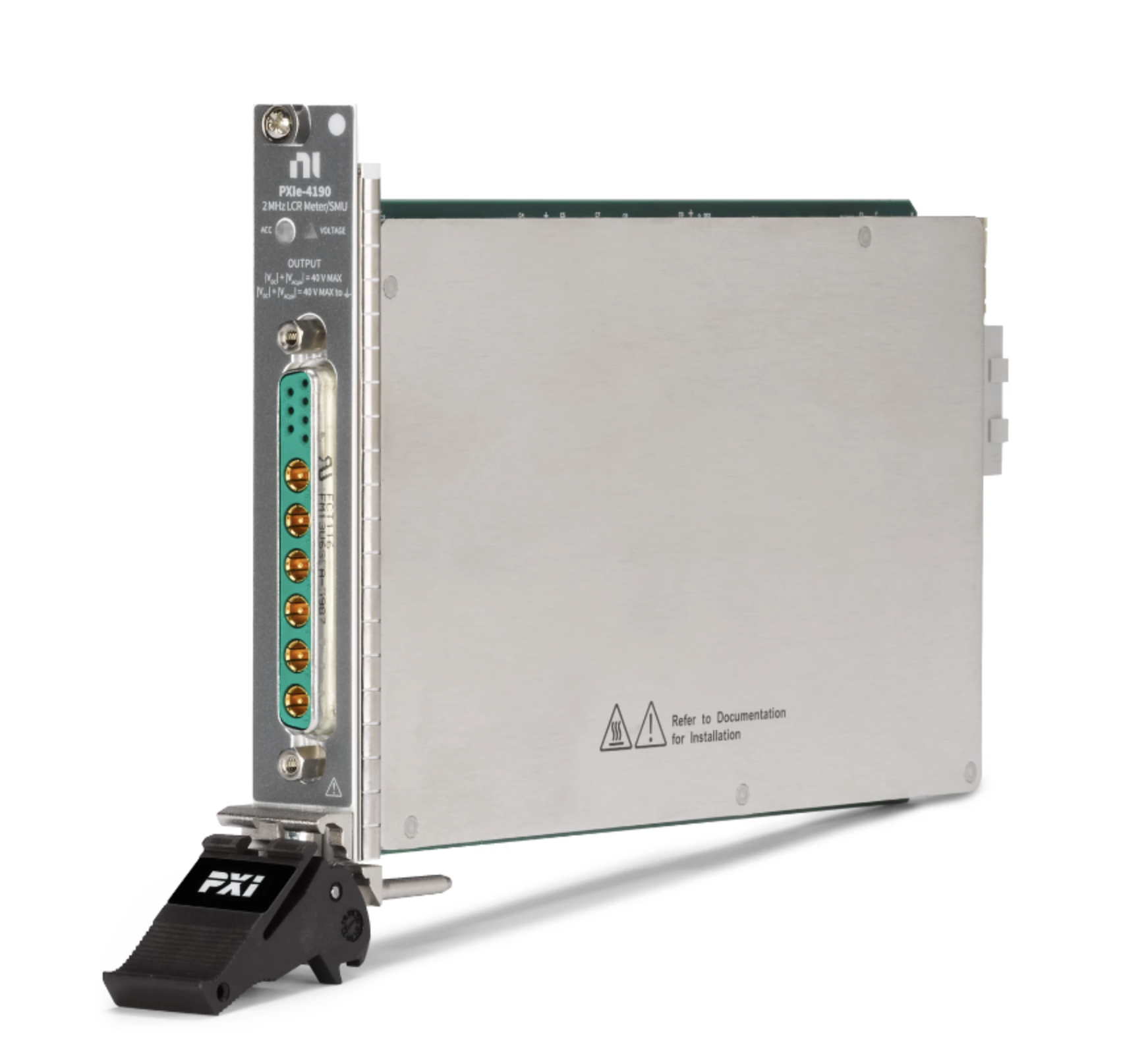

PXI Module, LCR-SMU
PXI LCR-SMU modules combine impedance measurement and precision sourcing to characterize inductance, capacitance, and resistance under bias in test systems.
PXI Module, Programmable Load
NI PXI programmable load modules simulate adjustable resistance for automated sensor, automotive, and industrial test systems. NI Authorized Distributor.

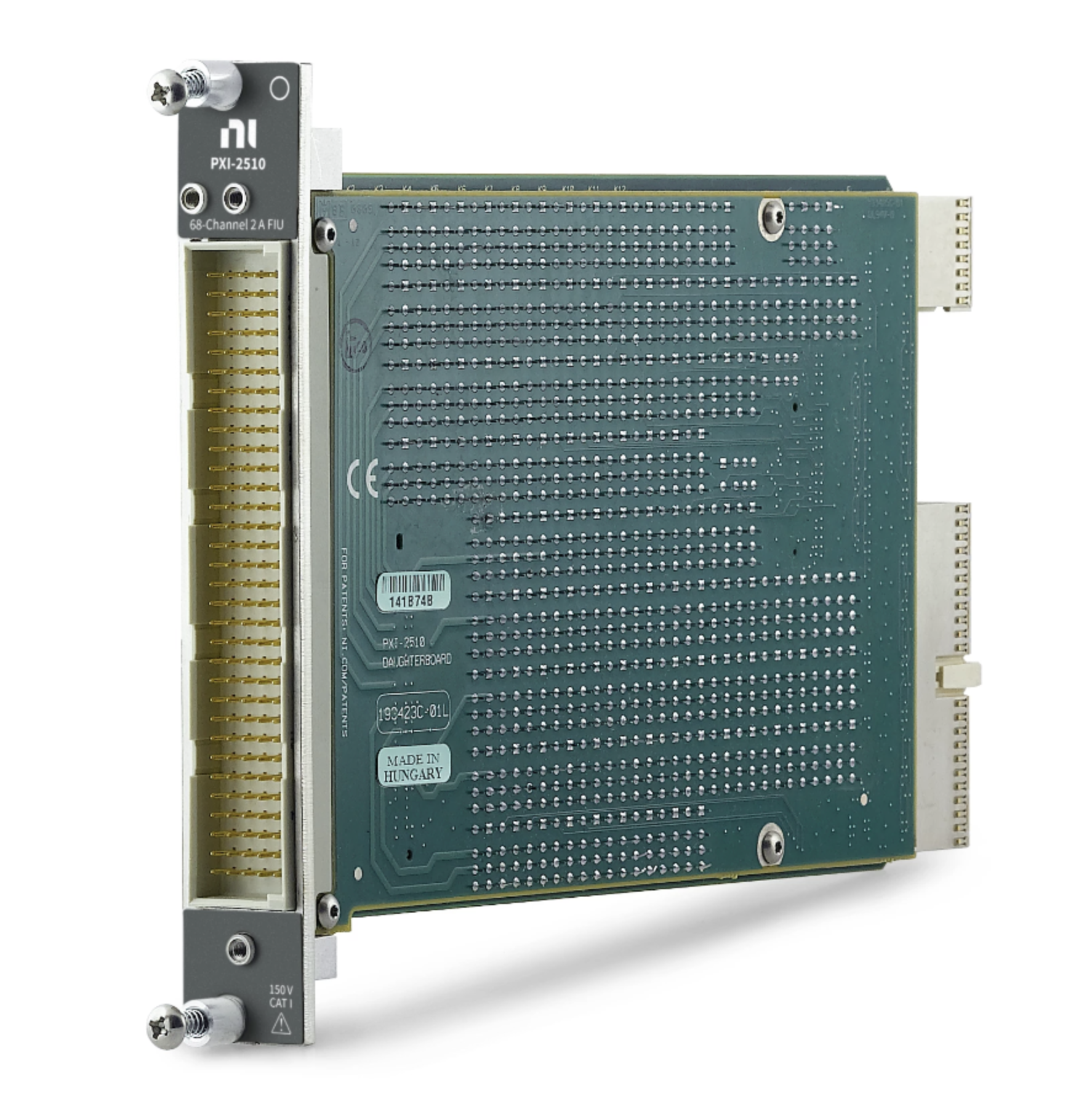

PXI Module, Fault Insertion
NI PXI fault insertion modules simulate shorts, opens, and wiring faults for automated safety, reliability, and validation testing. NI Authorized Distributor.

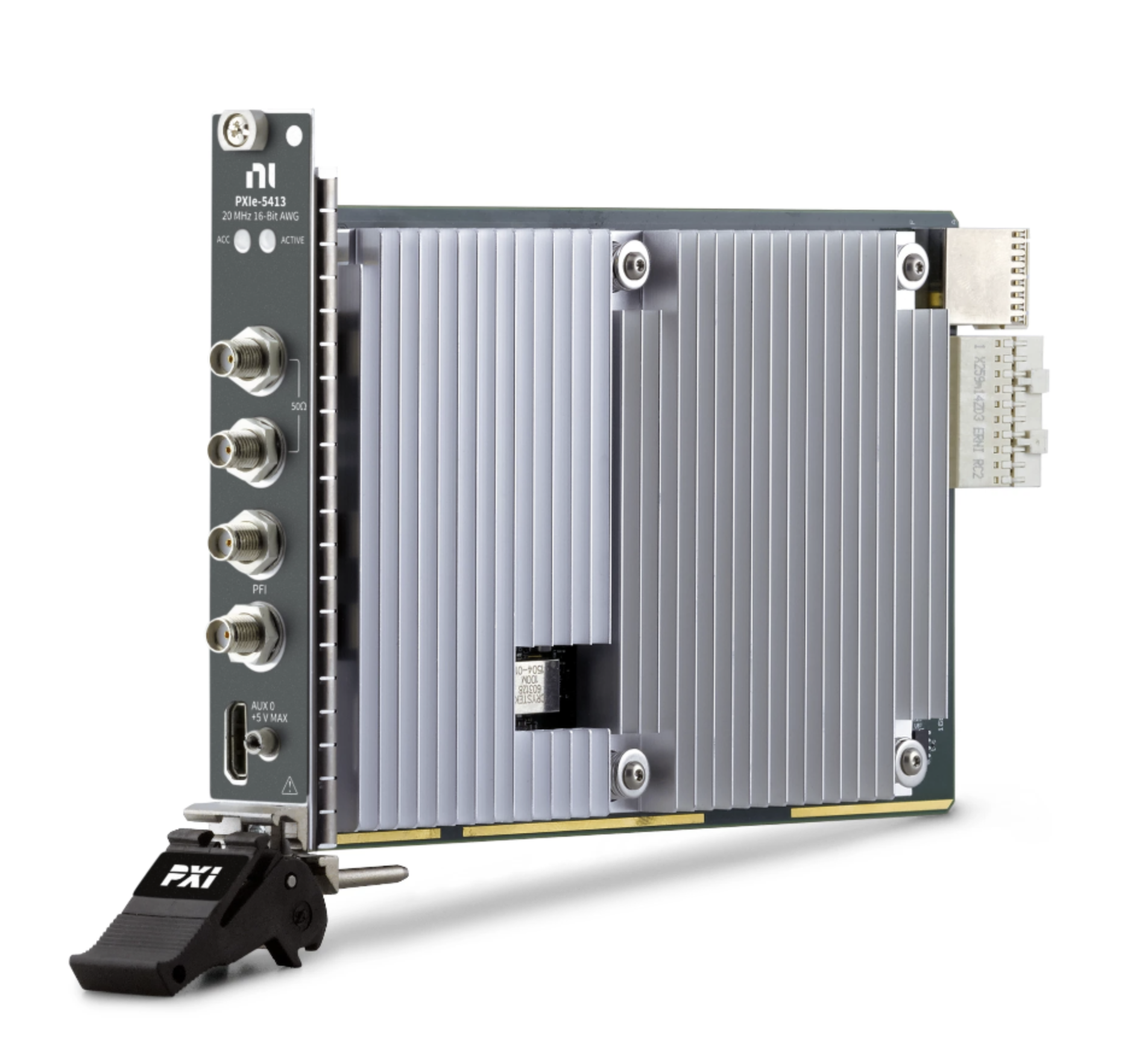

PXI Module, Waveform Generator
Flexible analog signal output with PXI synchronization for testing and simulation.

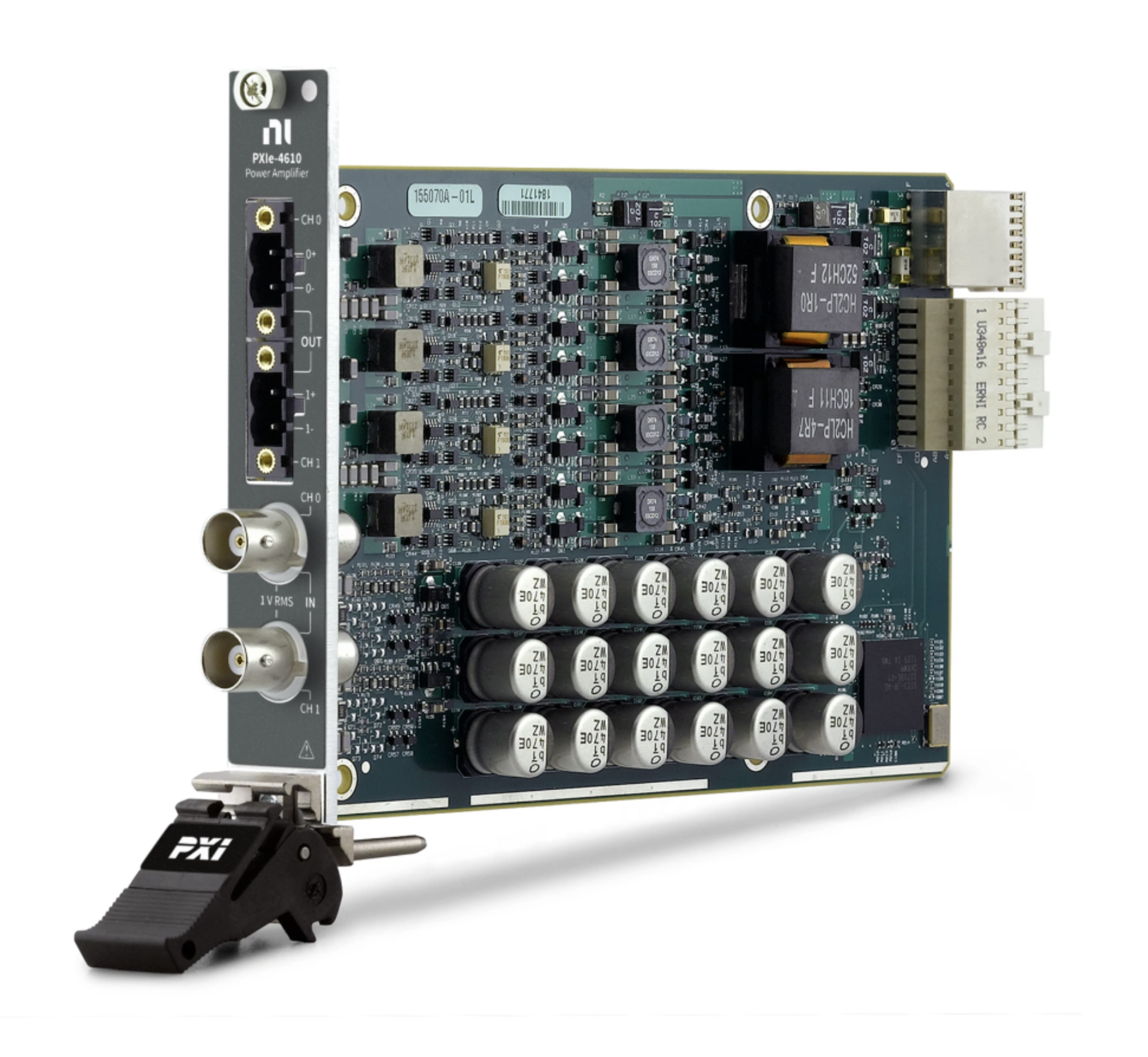

PXI Module, Power Amplifier
High-power signal amplification for driving loads or testing high-level inputs.
