PXI Module, Relay General Purpose
General-purpose relay modules allow PXI systems to switch signals or power paths on and off automatically. They work like electronic switches, replacing manual patching.
Their specs include number of relays, switching voltage, and current capacity. Some modules use electromechanical relays for flexibility, while others use solid-state relays for speed and long life.
In PXI, relay modules are used to route test signals, connect or disconnect devices, and control external circuits. They are common in automated test setups where flexible signal routing is required.
Hide obsolete product
780587-42
PXIe-2542
$8,641.00
6.6 GHz 50 Ohm Solid State Quad SPDT
Secondary Text
778572-69
PXI-2569
$4,517.00
EM Relay SPST, 100 V, 1 A, 100 ch
Secondary Text
Ships in 3-5 Days

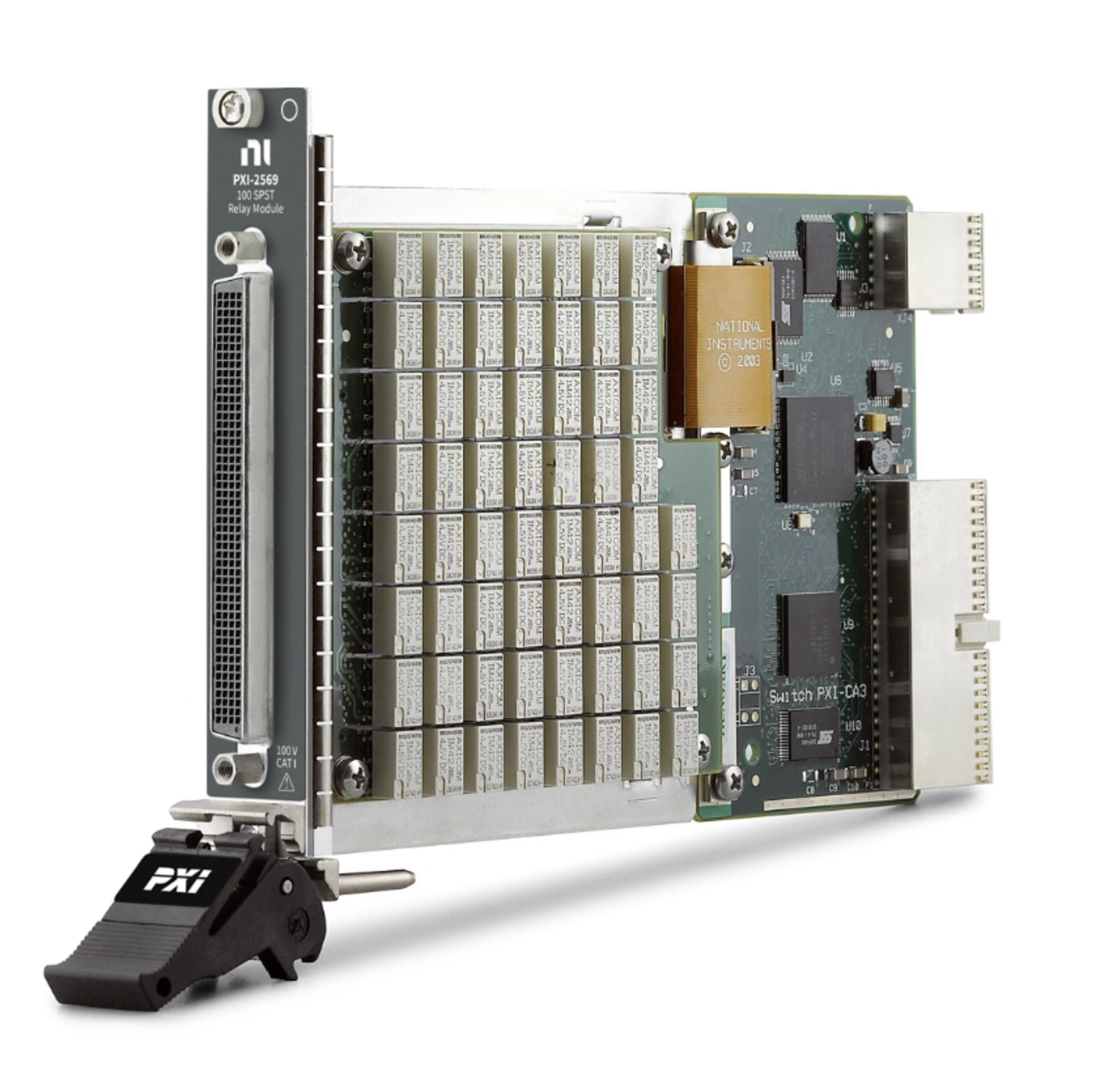

780587-69
PXIe-2569
$4,517.00
EM Relay SPST (NO), 100-Ch, 100 V, 1 A
Secondary Text
Ships in 3-5 Days
778572-20
PXI-2520
$4,283.00
EM Relay SPST, 150 V, 2 A, 80 ch
Secondary Text
Ships in 3-5 Days
778572-71
PXI-2571
$3,934.00
EM Relay SPDT, 100 V, 1 A, 66 ch
Secondary Text
778572-68
PXI-2568
$3,594.00
EM Relay SPST, 31 ch, 150 V, 2 A
Secondary Text
Ships in 3-5 Days
778572-22
PXI-2522
$3,424.00
EM Relay SPDT, 100 V, 2 A, 53 ch
Secondary Text
777754-01
PXI-2565
$3,329.00
EM Relay SPST, 16 ch, 250 V, 7 A
Secondary Text
No Longer Manufactured
778572-70
PXI-2570
$3,235.00
EM Relay SPDT, 100 V, 1 A, 40 ch
Secondary Text
No Longer Manufactured

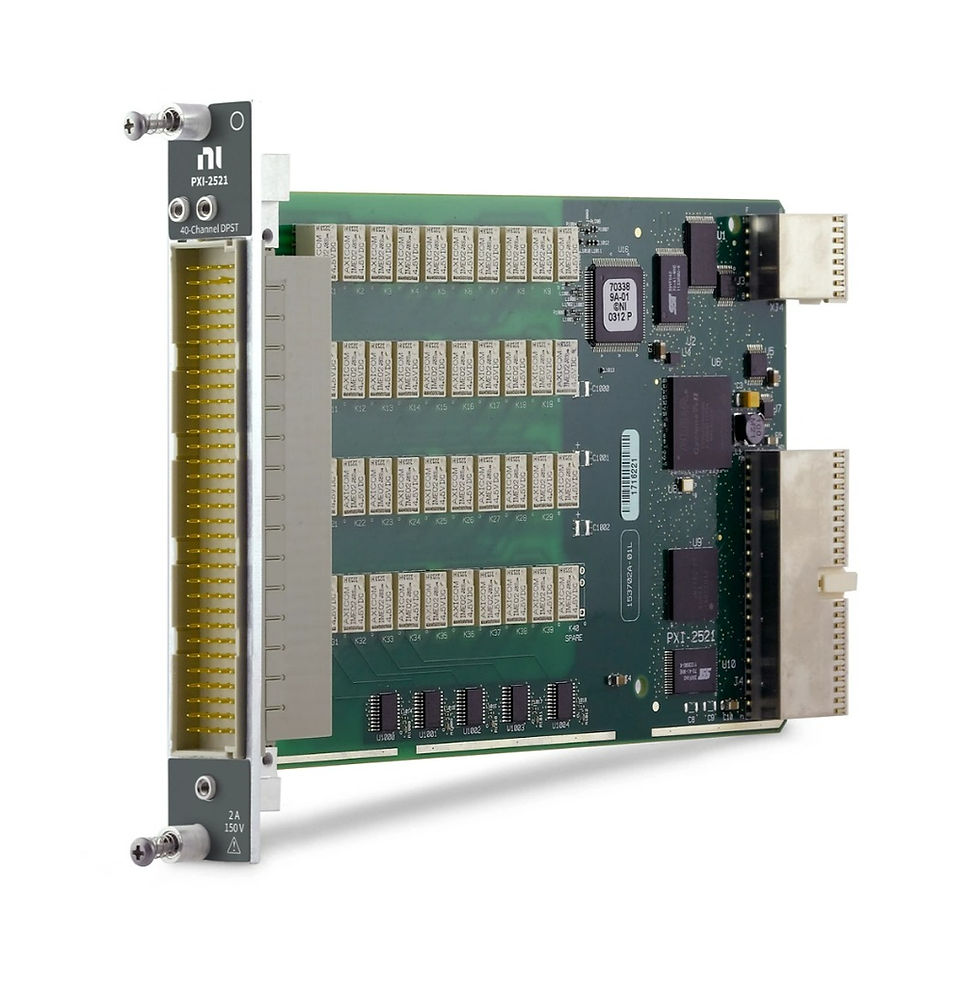

778572-21
PXI-2521
$3,179.00
EM Relay DPST, 150 V, 2 A, 40 ch
Secondary Text
778572-86
PXI-2586
$3,010.00
EM Relay SPST, 300 V, 12 A, 10 ch
Secondary Text
Ships in 3-5 Days
778572-23
PXI-2523
$2,914.00
EM Relay DPDT, 100 V, 2 A, 26 ch
Secondary Text
778572-64
PXI-2564
$2,780.00
EM Relay SPST, 16 ch, 150 V, 5 A
Secondary Text
Ships in 3-5 Days
778572-66
PXI-2566
$2,780.00
EM Relay SPDT, 16 ch, 150 V, 2 A
Secondary Text
Ships in 3-5 Days
