CompactDAQ Modules
The NI CompactDAQ™ (cDAQ) Modules provide modular, high-accuracy input and output for data acquisition and measurement applications across laboratory, industrial, and field environments. Designed to work seamlessly with NI CompactDAQ chassis, these modules enable precise measurement and generation of real-world signals with synchronized, reliable performance. CompactDAQ modules support a wide range of I/O types, including analog input, analog output, digital I/O, counter/timer functions, and specialty measurements such as temperature, strain, vibration, sound, and motion. Their hot-swappable, modular design allows engineers to quickly configure and reconfigure systems to meet changing measurement requirements. NI CompactDAQ Modules are widely used in product validation, electronics testing, structural and environmental monitoring, academic research, and industrial automation. With rugged options available for harsh conditions and tight integration with NI software, CompactDAQ modules provide a scalable and dependable foundation for flexible data acquisition systems.

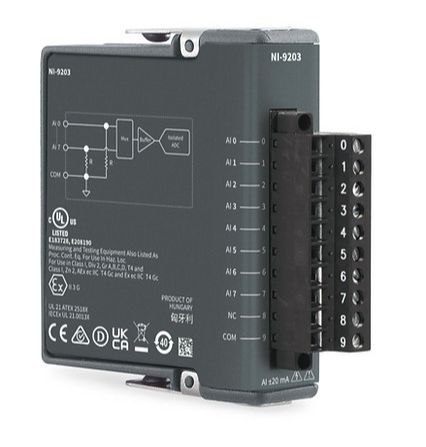

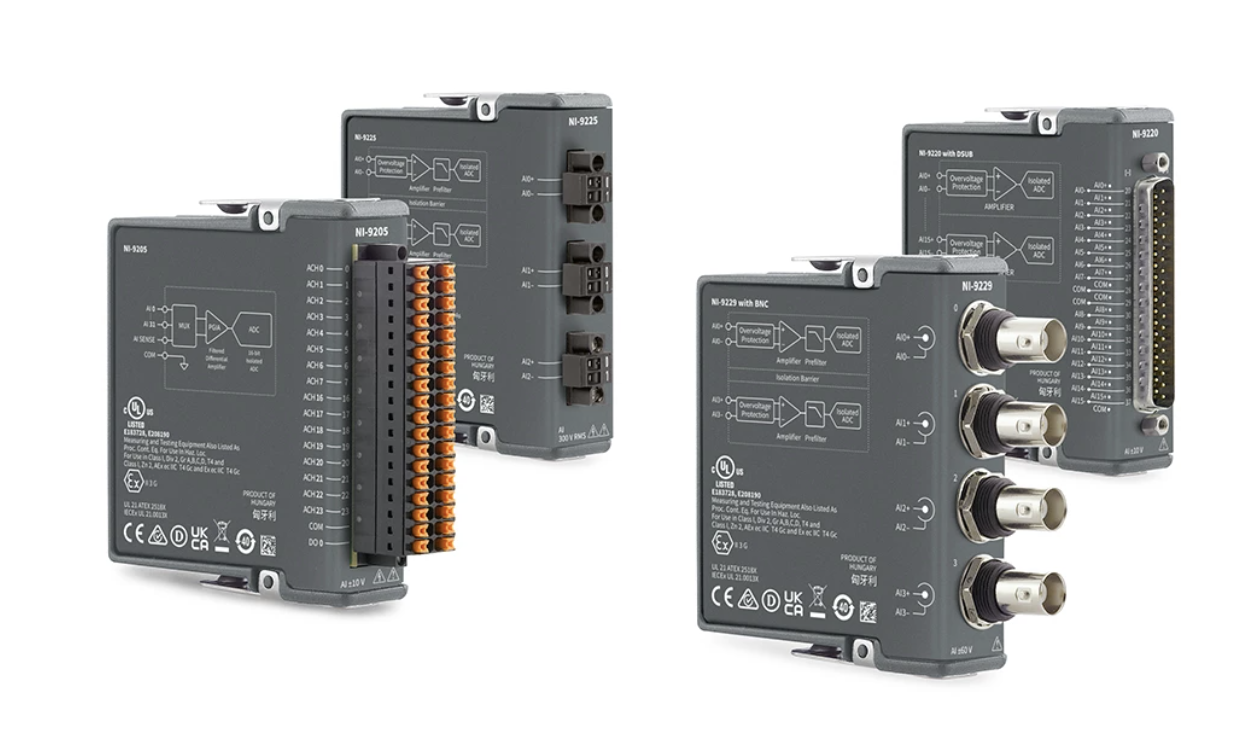

C-Series Module, Analog Voltage In
Measures analog voltage signals with varying sample rates, ranges, and channel counts.

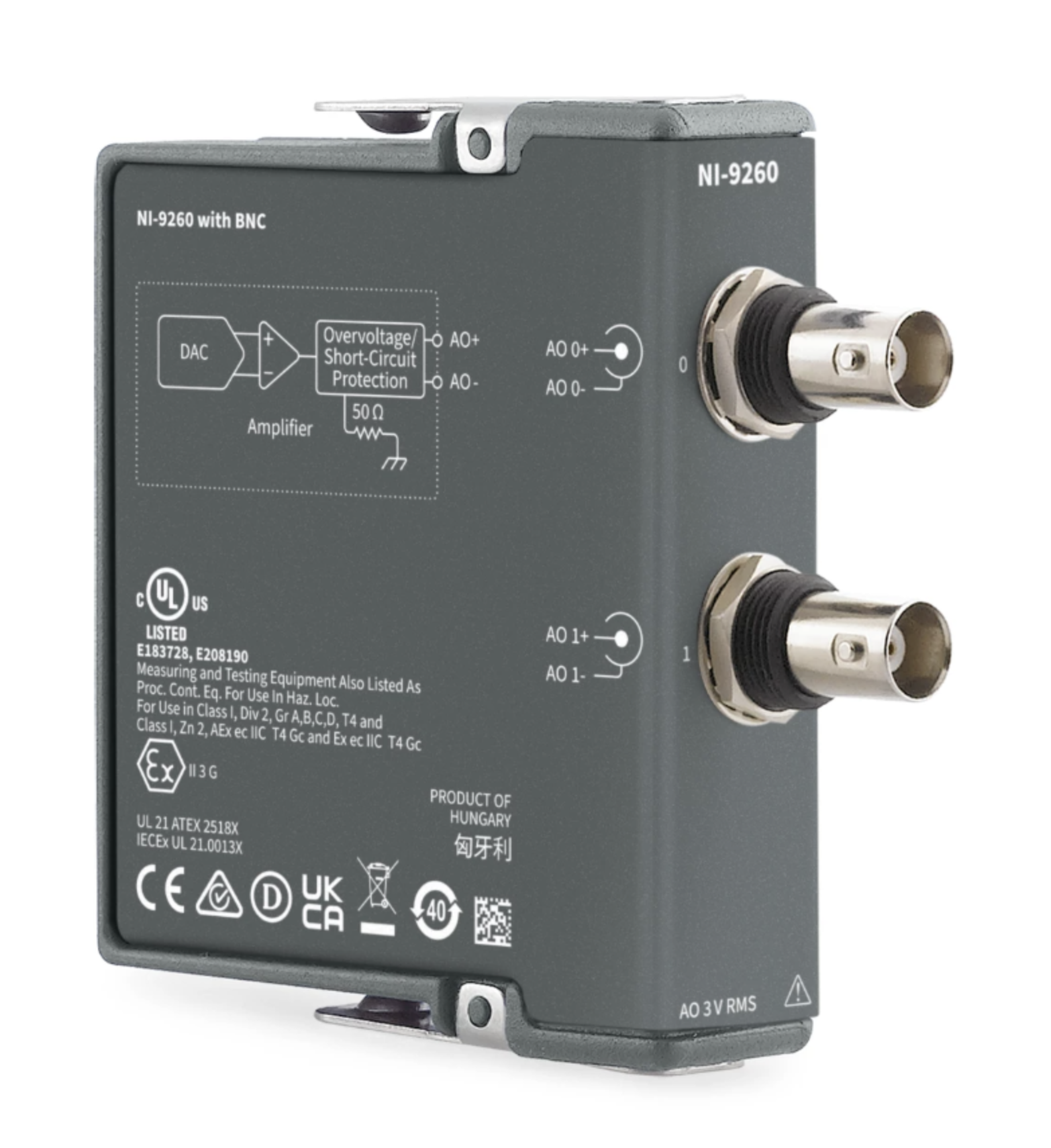

C-Series Module, Analog Voltage Out
Generates precise analog voltage signals for control, simulation, or signal generation tasks.
C-Series Module, Universal Input
Supports multiple sensor types-including voltage, current, thermocouple, and RTD-in a single module for maximum flexibility.
C-Series Module, Multifunction I/O
Combines multiple I/O types like analog, digital, and counters in one module for flexible mixed-signal applications.
C-Series Module, Counter Input
Captures event counts, encoder signals, or pulse measurements with hardware-timed precision.
C-Series Module, Current Input
Measures analog current signals directly from transducers or industrial sensors.
C-Series Module, Current Output
Generates controlled analog current signals for process control or actuator drive.
C-Series Module, Synchronization
Adds timing and trigger capabilities to coordinate measurements across multiple modules or systems.
C-Series Module, Thermocouple
Connects directly to thermocouples for accurate temperature measurement across a wide range.
C-Series Module, RTD
Measures resistance temperature detectors (RTDs) with 2-, 3-, or 4-wire configurations for high-accuracy temperature sensing.
C-Series Module, Relay
Provides electromechanical or solid-state relays for switching and control of external circuits.
C-Series Module, Bridge
Interfaces with strain gauges and load cells for structural and force measurements.
C-Series Module, Digital I/O
Reads or drives TTL or industrial-level digital signals for on/off control and monitoring.
C-Series Module, Communication
Adds serial or fieldbus interfaces for integration with other devices and networks.
C-Series Module, Ind Digital Out
Switches industrial-level digital outputs for controlling relays, solenoids, or actuators.
C-Series Module, Ind Digital In
Reads industrial-level digital inputs from sensors, switches, or other control devices.
C-Series Module, IEPE
Interfaces with IEPE sensors such as accelerometers and microphones for vibration and sound measurements.
C-Series Module, Freq Input
Measures frequency, period, or rotational speed from pulse or tachometer signals.
C-Series Voltage/Current In
Measures both voltage and current in one module for electrical signal monitoring.
C-Series Safety Module
Adds safety-rated digital I/O for emergency stop, safety interlock, or other safety-critical circuits.
